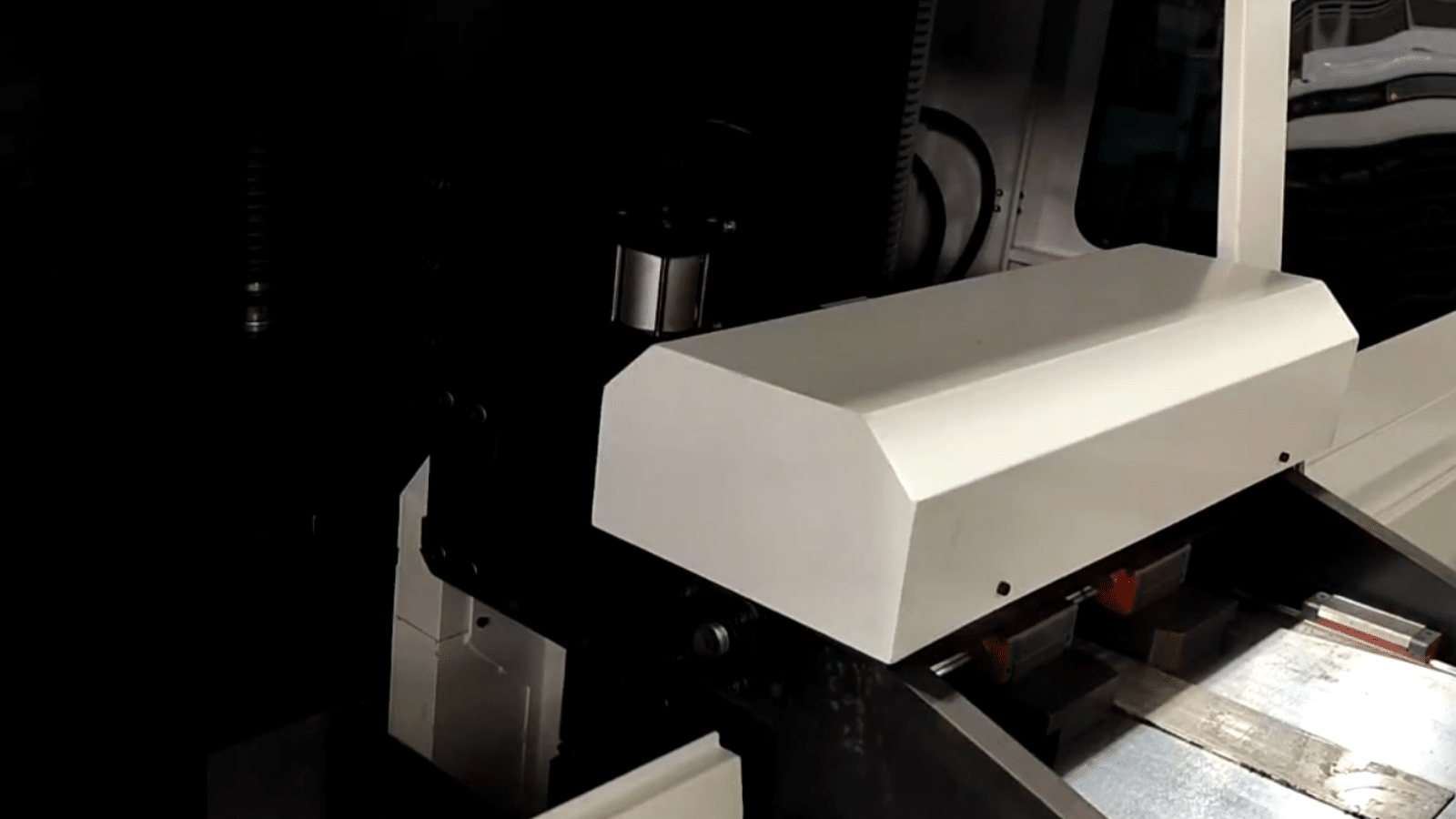

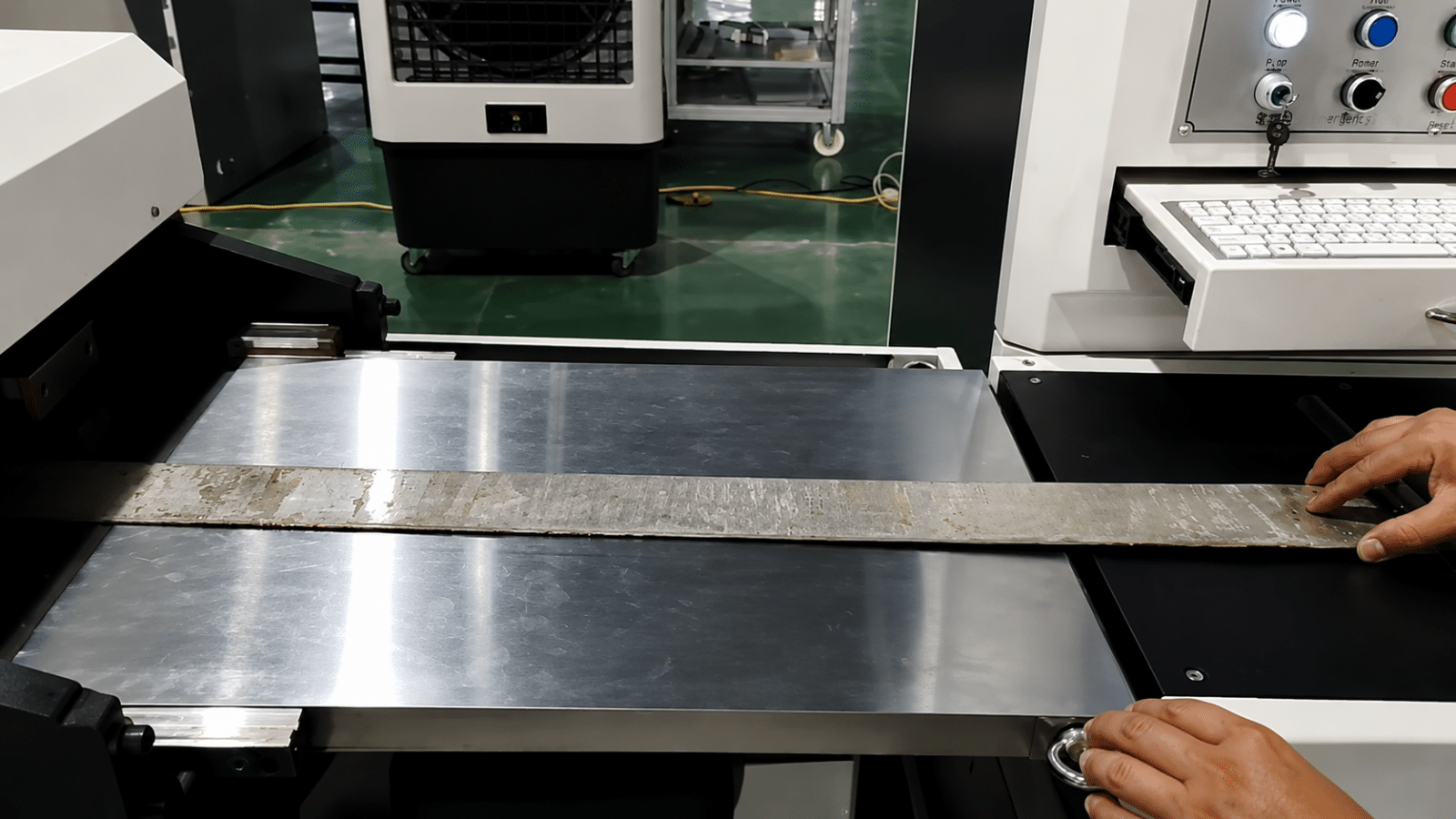

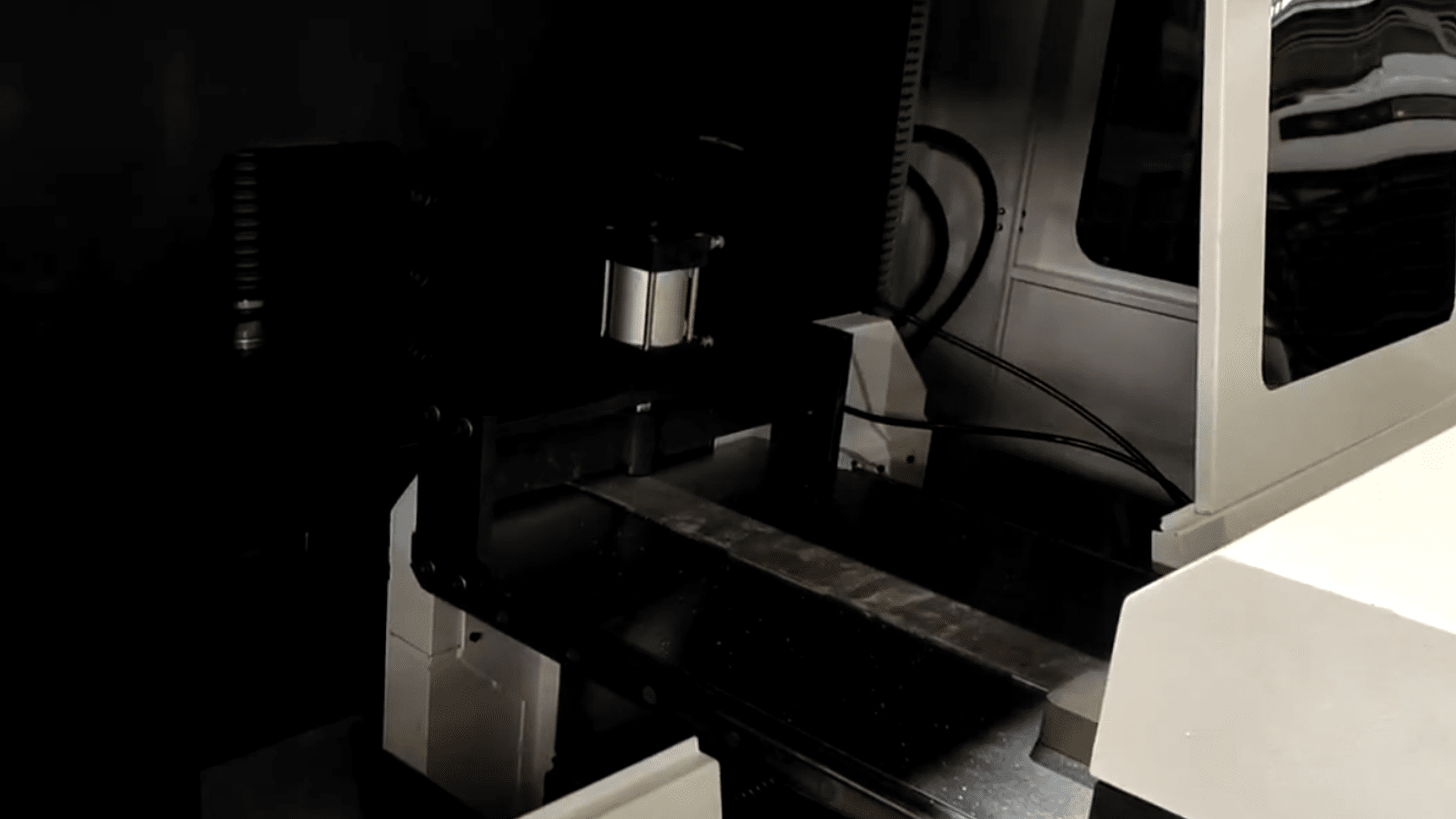

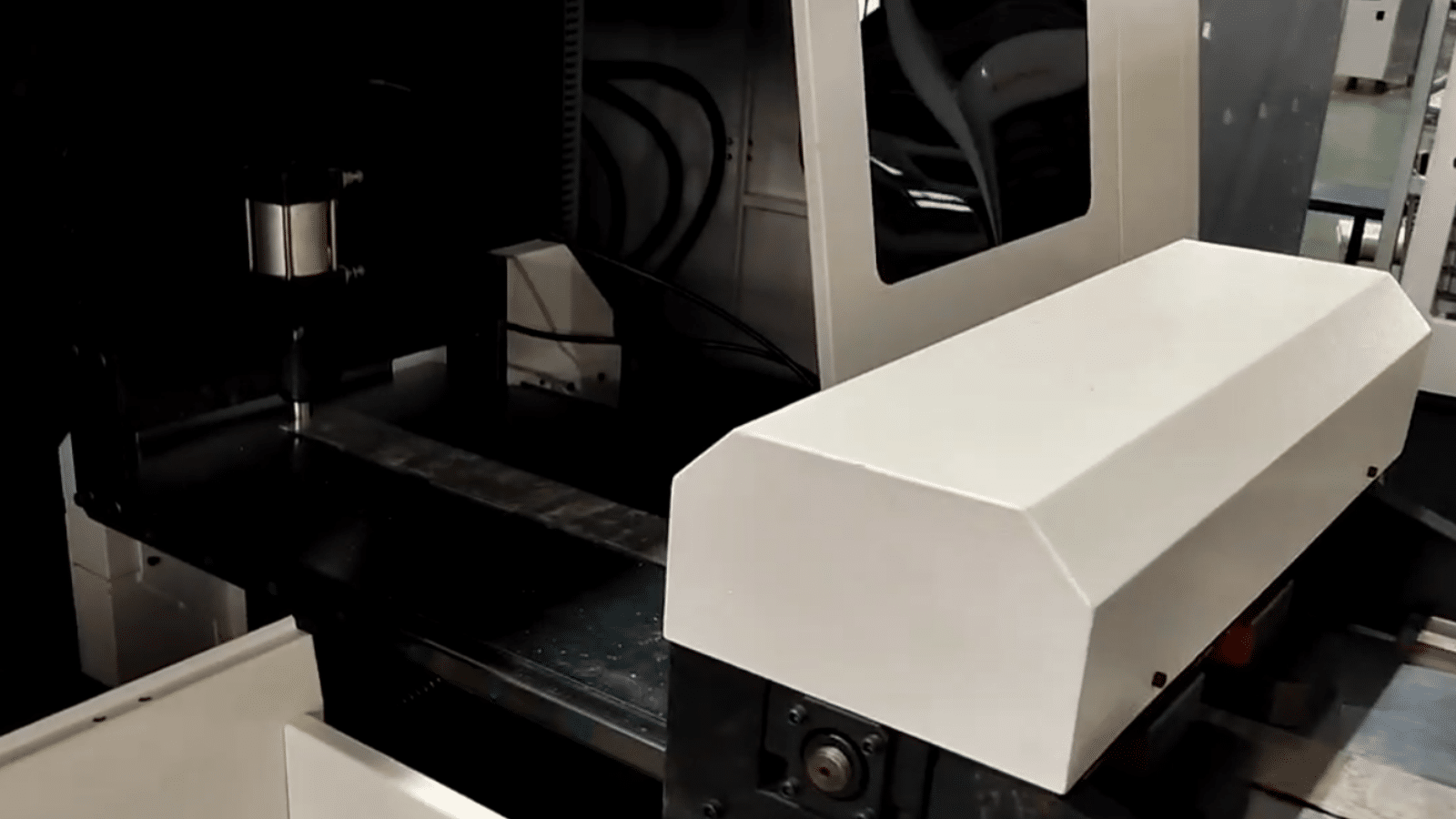

The TRANFOVIA CNC Busbar Sawing and Folding Machine integrates circular-saw cutting and hydraulic folding in one CNC-controlled system for copper busbar production. The saw is servo-driven through a rack-and-pinion mechanism for reciprocating cutting feed and retraction, while the folding section uses coordinated hydraulic-axis movement to form the busbar.
The machine is used in transformer, switchgear, electrical cabinet and power-distribution production when copper busbars need to be cut by circular saw and then folded or formed in an integrated CNC workflow. It is suitable for factories that want to reduce transfer between separate sawing and bending stations and standardize repeated cut-and-form operations on busbars up to the listed processing range.

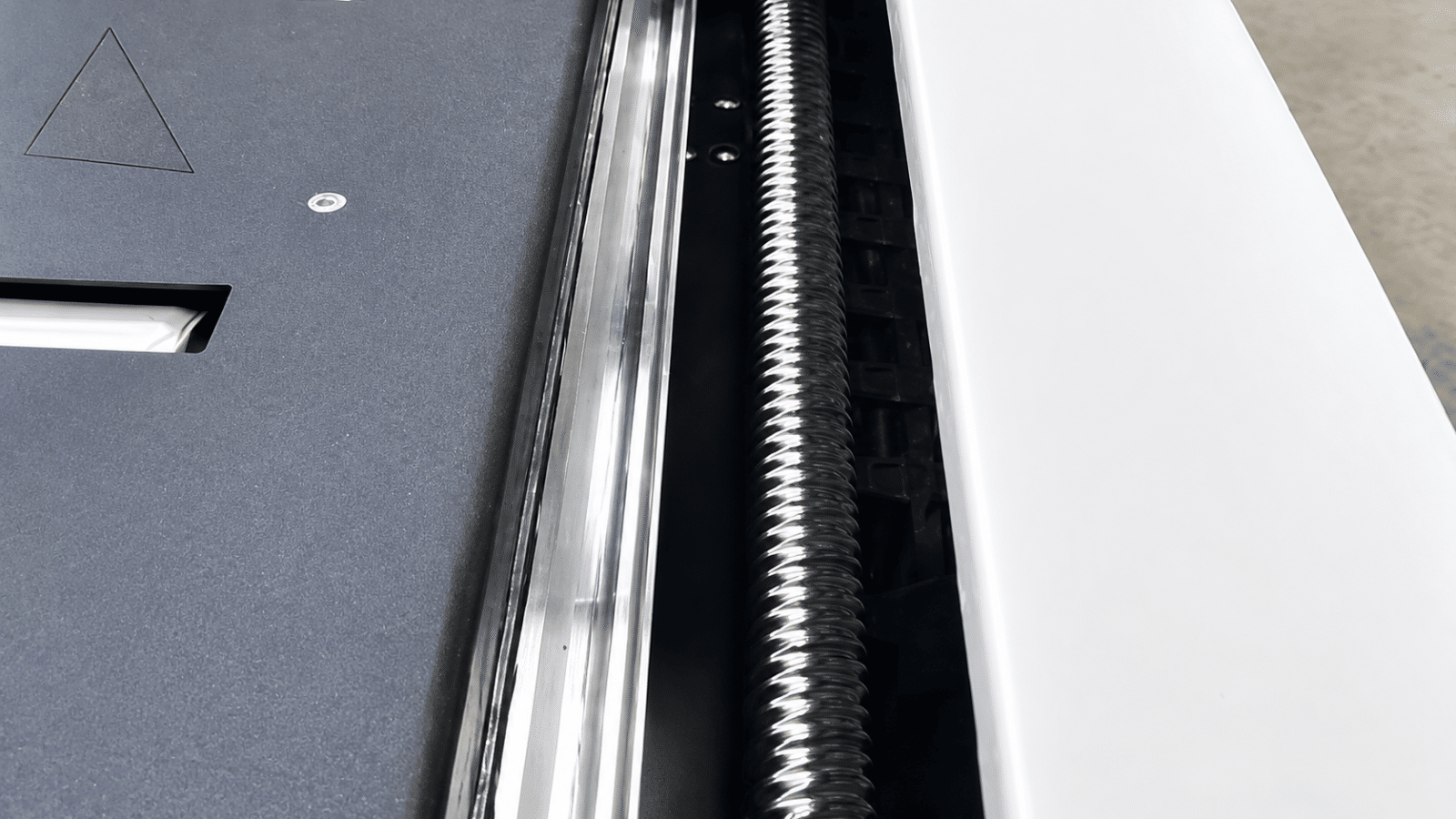

The circular saw moves through a servo-driven rack-and-pinion system for cutting feed and tool return.

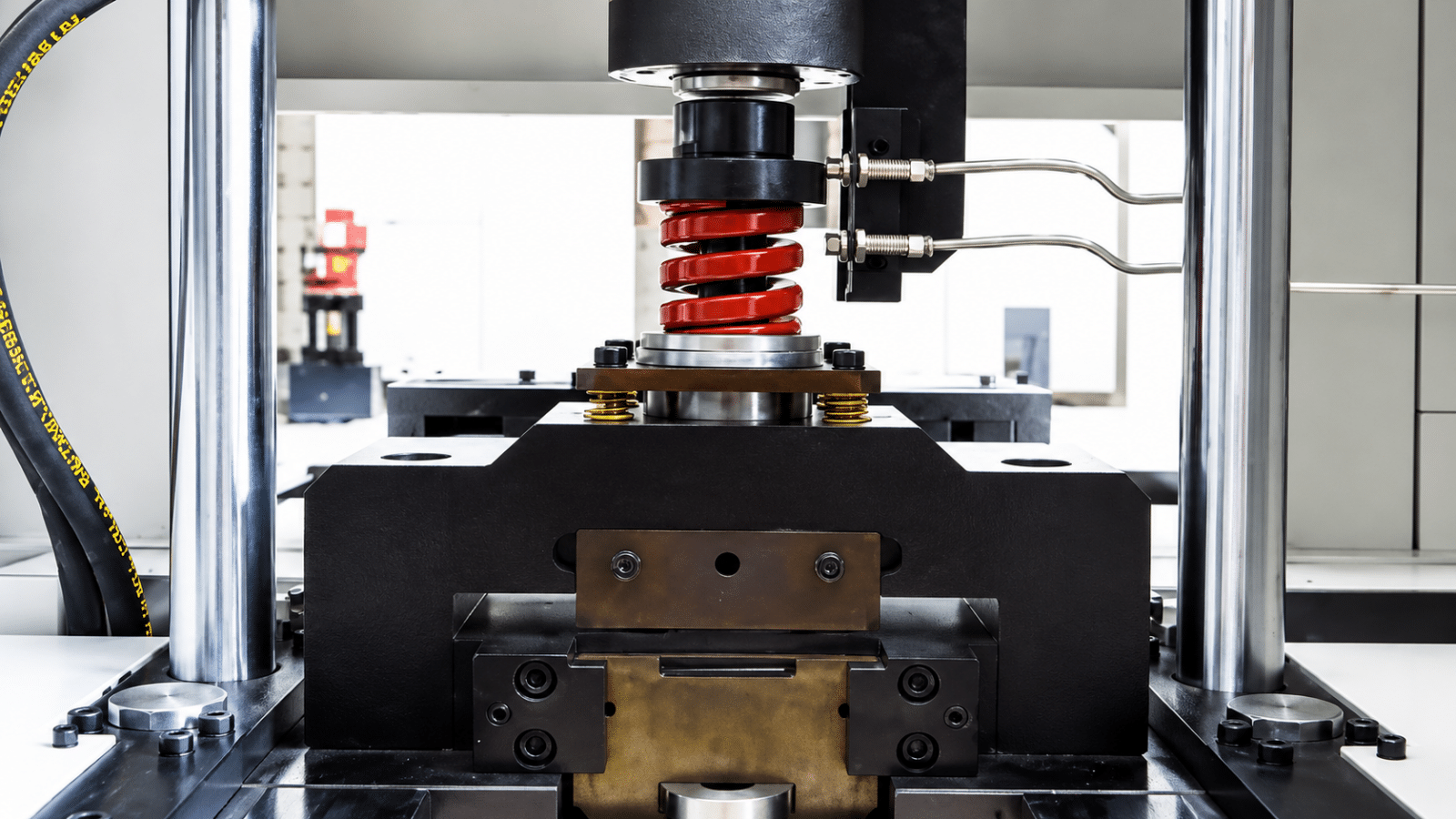

The hydraulic system uses dual-speed and dual-pressure rapid oil supply with up to 600 kN output force.

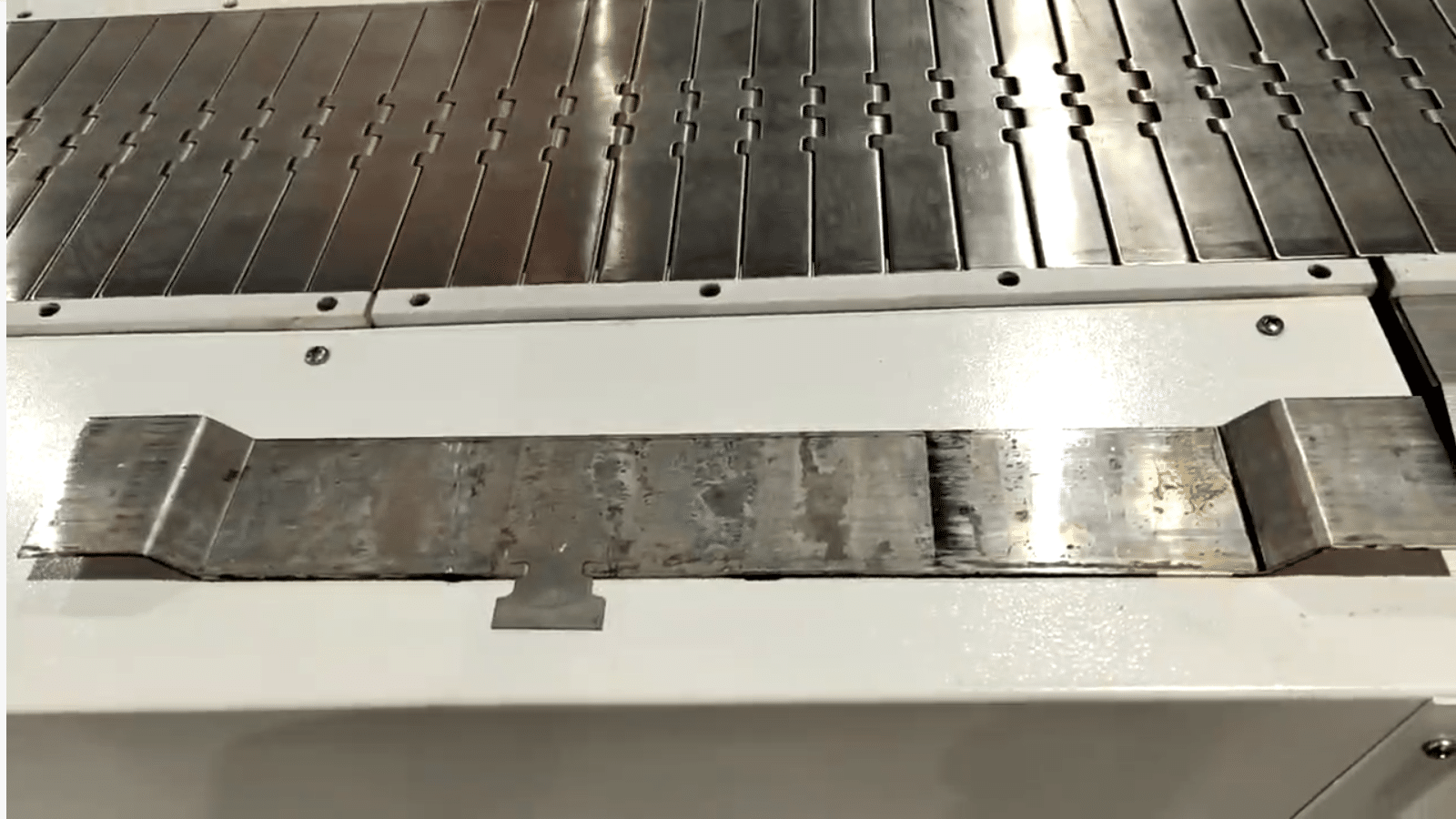

Hydraulic cylinders lift to different heights through coordinated motion to create the folding effect.
The machine uses six control axes to coordinate sawing and forming operations.
Processing can move from saw cutting to folding without treating the equipment as a punch/shear line.
| Item | Unit | Parameter |
| Nominal Pressure — Lifting Unit | kN | 600 |
| Nominal Pressure — Pressing Unit | kN | 600 |
| Control Axes | Axis | 6 |
| Saw Blade Length Accuracy | mm/m | ±0.20 |
| Max. Copper Busbar Width | mm | 260 |
| Max. Copper Busbar Thickness | mm | 6 |
| Machine Footprint | mm | 9500 × 2980 × 1700 |
| No. | Component | Brand |
| 1 | Main Motor | ABB |
| 2 | Programmable Logic Controller | Beckhoff, Germany |
| 3 | Servo Motor | Rexroth |
| 4 | Intermediate Relay | Honeywell |
| 5 | Servo Driver | Rexroth |
| 6 | Industrial Computer | Beijing Qiyang |
| Equipment / Process | Choose It When | Main Boundary |
| CNC Sawing & Folding Machine | You need circular-saw cutting followed by coordinated folding/forming in one process. | No punch die library; the machine is not intended as the main hole-punching station. |
| CNC Punching & Shearing Machine | You need holes, slots, embossing and shearing on long copper/aluminum busbars. | Uses blade shearing rather than a circular-saw cut-and-fold workflow. |
It combines circular-saw cutting with hydraulic folding/forming of copper busbars in one CNC-controlled system.
No. It does not replace a dedicated punching station. Its core process is sawing plus folding.
The listed processing range is up to 260 mm wide and 6 mm thick.
Sawing and shearing are different cut methods. This machine is selected when the production route requires circular-saw cutting before folding.
Provide busbar material, width, thickness, cut length, fold geometry, cycle expectations and upstream/downstream equipment.
