Introduction
The Iron Core Stacking and Turning Table is a specialized machine designed for stacking and turning transformer cores, particularly for medium and large-size transformers. It helps manufacturers improve production efficiency, reduce labor intensity, and ensure safer core handling in transformer workshops.
In transformer manufacturing, the iron core assembly process usually follows core cutting and silicon steel lamination preparation. For manufacturers building a complete core production line, this equipment can work together with a Transformer Core Cutting Line to improve workflow efficiency.
This equipment supports stable stacking, controlled turning, and reliable positioning of transformer cores.
What Is an Iron Core Stacking and Turning Table？
An Iron Core Stacking and Turning Table is a dedicated machine used for:
- Transformer core stacking
- Core turning (flipping)
- Core positioning during assembly

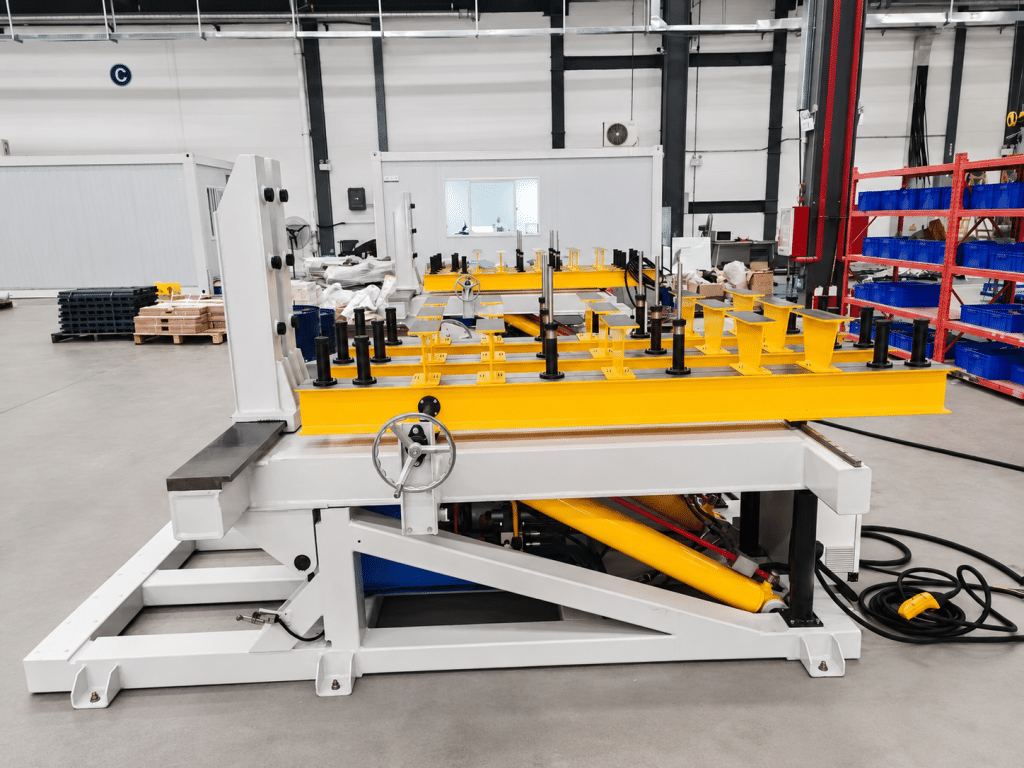

It provides a stable working platform for assembling silicon steel cores and allows the core to be turned safely during production.
Typical applications:
- Power transformer manufacturing
- Medium and large transformer production
- Core stacking and turning processes
- Three-column and five-column core assembly
- Workshop core handling without heavy crane dependence
Compared with traditional crane-assisted methods, a dedicated turning table offers better stability, higher safety, and more controlled operation.
Machine Usage
The Iron Core Stacking and Turning Table supports the core stacking process, then assists in turning the core to the required position. This reduces risks caused by repeated lifting, manual adjustment, and unstable movement.
For transformer manufacturers, the machine enables a safer, more efficient, and standardized core assembly workflow.
Key Features
1. Modular Combination Structure

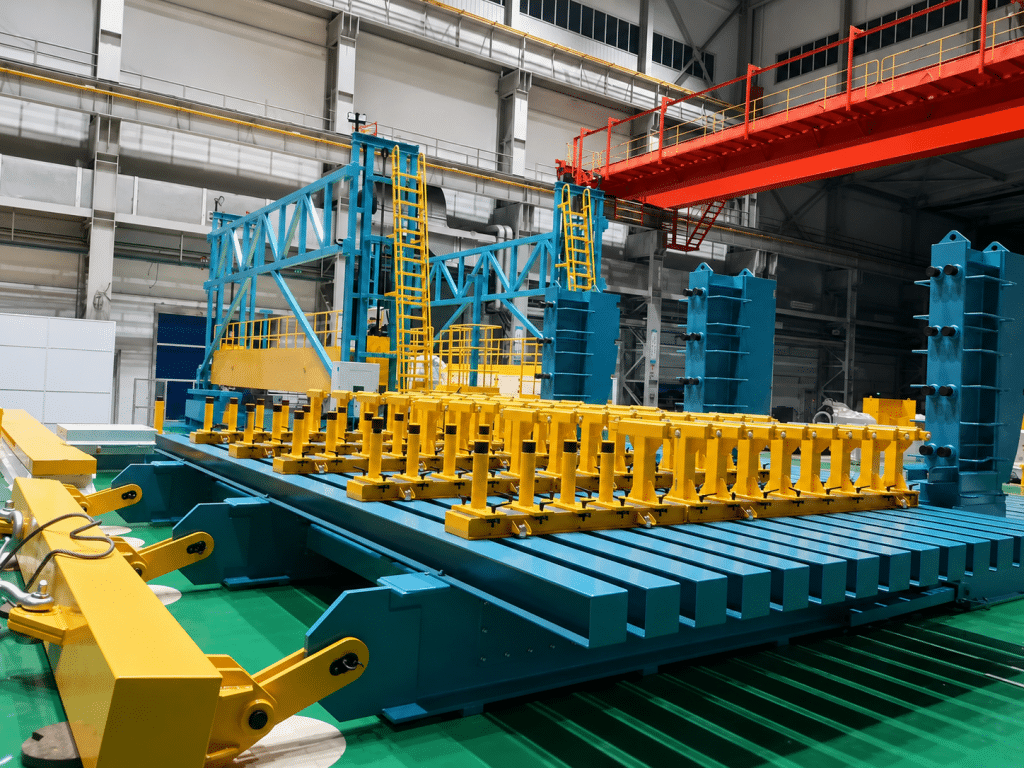

The platform uses a modular design that can be paired according to the transformer core window size. This provides strong adaptability for various core specifications, allowing one machine to handle multiple transformer models.
2. No Pit or Special Foundation Required
The equipment does not require a deep pit or poured concrete foundation. It can be placed directly on the workshop floor. This reduces installation cost and time.
3. Strong Turning Ability with Low Energy Consumption
The turning operation is driven by the workshop crane’s lifting force — no additional energy. This reduces both energy consumption and auxiliary equipment investment, offering a high cost-performance ratio.
4. Safe and Stable Turning Process
The turning process is synchronized and controlled, helping to prevent core deformation. For large cores, deformation during turning can affect assembly accuracy and final product quality. This equipment ensures reliable, stable flipping.
5. Adjustable Center Distance and Customizable Table Size
Center distance can be adjusted according to production needs. The worktable size can be custom-designed to match your core dimensions, workshop layout, and assembly process.
6. High Precision and Low Deformation
- Overall deformation during turning is controlled to less than 3 mm
- Verticality between the stacking table and flipping beam is controlled to less than 2 mm before and after turning
These precision controls ensure stable core positioning and reduce assembly deviation.
7. Finite Element Analysis for Structural Strength
The structure is designed using advanced software and verified by finite element analysis (FEA). The main frame is made of hot-rolled section steel or low-carbon steel welded construction, with aging treatment to reduce internal stress and improve long-term stability.
8. Flip Outriggers for Higher Safety

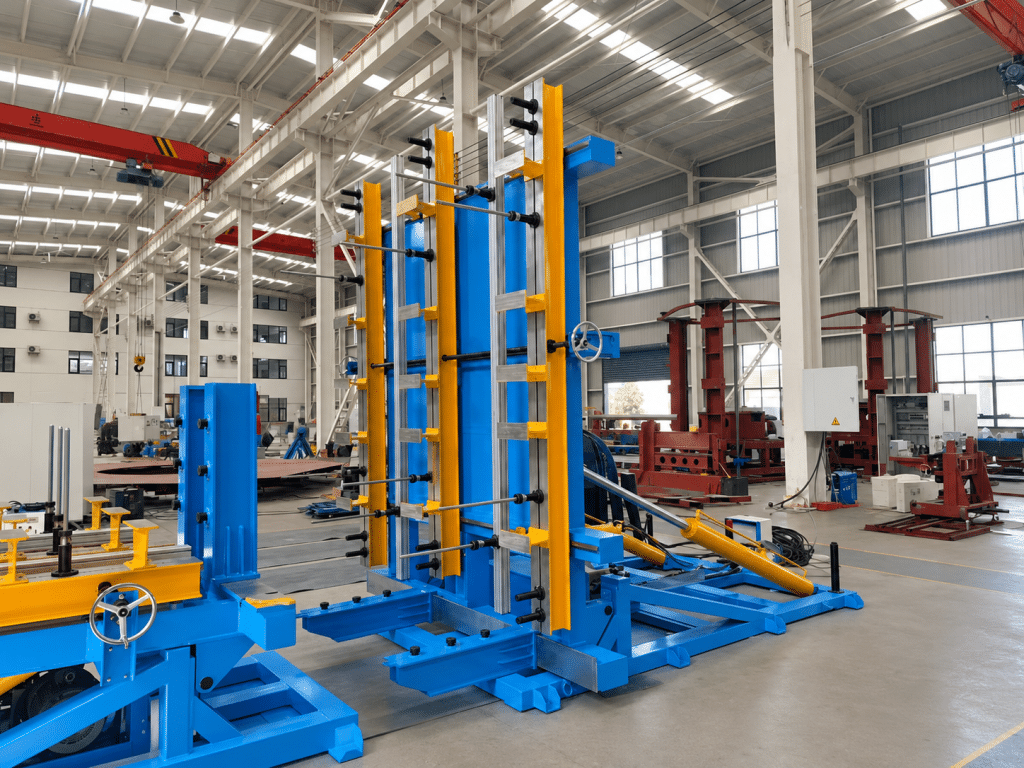

Longitudinal beams are equipped with flip outriggers. After the core is turned 90°, the outriggers can be extended to prevent instability or overturning. This is especially important for large, heavy cores.
Available Models
| Model | Load Capacity (tons) |
| FT02 | 2 |
| FT05 | 5 |
| FT10 | 10 |
| FT20 | 20 |
| FT30 | 30 |
| FT50 | 50 |
| FT80 | 80 |
| FT100 | 100 |
| FT150 | 150 |
| FT200 | 200 |
| FT250 | 250 |
| FT350 | 350 |
| FT450 | 450 |
Custom designs are also available based on core weight, window size, and workshop layout.
Application Range
Suitable for Different Core Assembly Processes
The equipment works for both:
- Core stacking with upper yoke stacking
- Core stacking without upper yoke stacking
Suitable for Three-Column and Five-Column Cores
| Core Type | Platform Configuration |
| Three-column | Three sets of platforms |
| Five-column | Five sets of platforms |
This makes the machine suitable for a wide range of transformer core production applications.
Why Transformer Manufacturers Need This Equipment
Traditional core assembly often relies heavily on cranes and manual coordination, leading to:
- High labor intensity
- Low assembly efficiency
- Difficult core positioning
- Higher risk during turning
- Possible core deformation
- Inconsistent quality depending on operator experience
The Iron Core Stacking and Turning Table solves these challenges by providing a stable, modular, and controlled solution for core stacking and turning.
Main Advantages for Transformer Production
| Item | Benefit |
| Efficiency | Reduces repeated lifting and manual adjustment, shortening production cycles |
| Safety | Stable support, synchronized turning, and anti-overturning outriggers |
| Investment | No extra power unit; no pit foundation — lower total cost |
| Adaptability | Modular design fits different core window sizes and transformer models |
| Accuracy | Controlled deformation and good verticality ensure consistent core positioning |
How to Choose the Right Model？
When selecting an Iron Core Stacking and Turning Table, consider:
- Core weight——match rated load capacity
- Core window size——select modular platform combination
- Core structure——three-column or five-column
- Turning angle——confirm equipment supports required angle (standard 90°)
- Workshop layout——crane operating area and core handling route
- Customization——for medium/large transformer production, custom table size and center distance are recommended
Conclusion
The Iron Core Stacking and Turning Table is a practical and reliable solution for transformer core stacking and turning, especially for medium and large-size transformer manufacturing.
With its modular structure, no-pit installation, crane-driven turning, low deformation, high precision, and flip outriggers for safety, this equipment helps manufacturers improve assembly efficiency and reduce handling risks.
For transformer factories looking to upgrade their core assembly process, this machine delivers strong value in safety, efficiency, flexibility, and long-term reliability.
Interested in Optimizing Your Core Assembly Line?
Our engineering team can help you select or customize the right stacking and turning table based on your core dimensions, weight, and workshop layout.
Contact us for a quick quotation or technical discussion.
FAQ
1. What is the Iron Core Stacking and Turning Table used for?
It is used for stacking and turning transformer cores during assembly, especially for medium and large transformers.
2. Does the machine require a pit or foundation?
No. It does not require a deep pit or poured foundation. For very heavy loads, simple expansion bolts can secure the base, but no major civil work is needed.
3. Is it suitable for three‑column and five‑column transformer cores?
Yes. Three‑column cores use three platform sets; five‑column cores use five platform sets.
4. How does the machine improve safety?
It provides stable support, synchronized turning, and flip outriggers that prevent instability after 90° turning.
5. What models are available?
FT02, FT05, FT10, FT20, FT30, FT50, FT80, FT100, FT150, FT200, FT250, FT350, FT450 (load capacity in tons).
