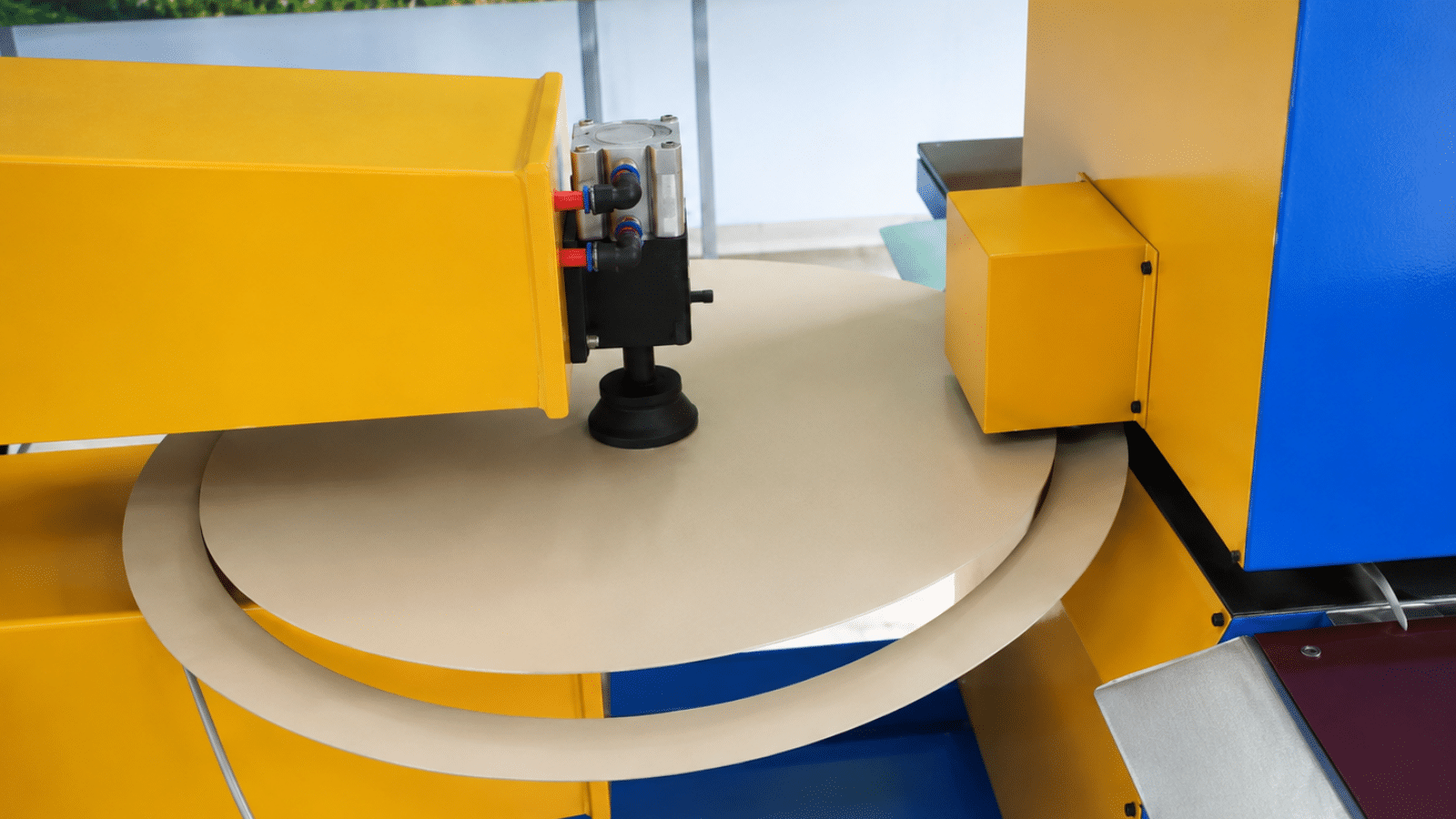

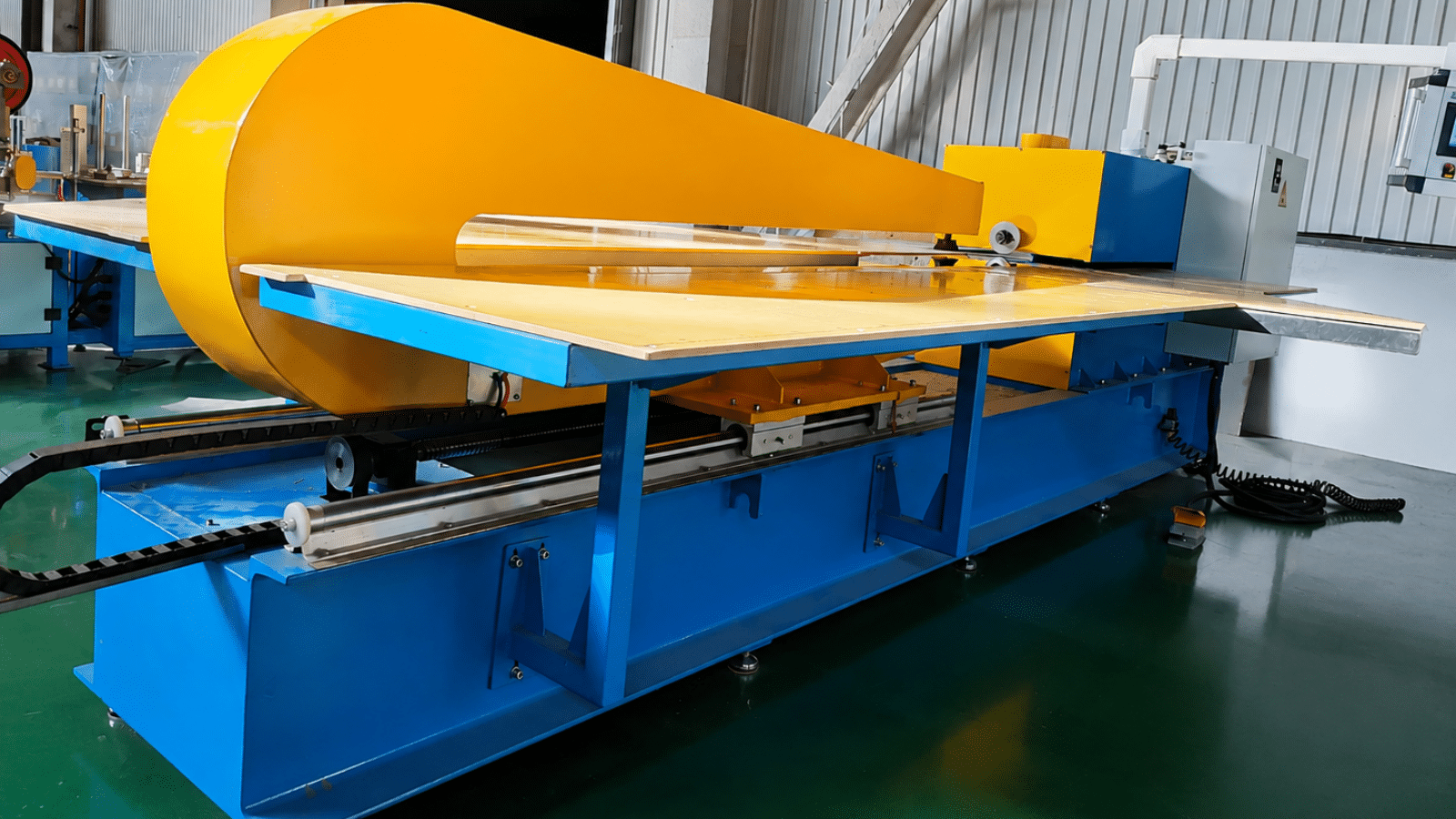

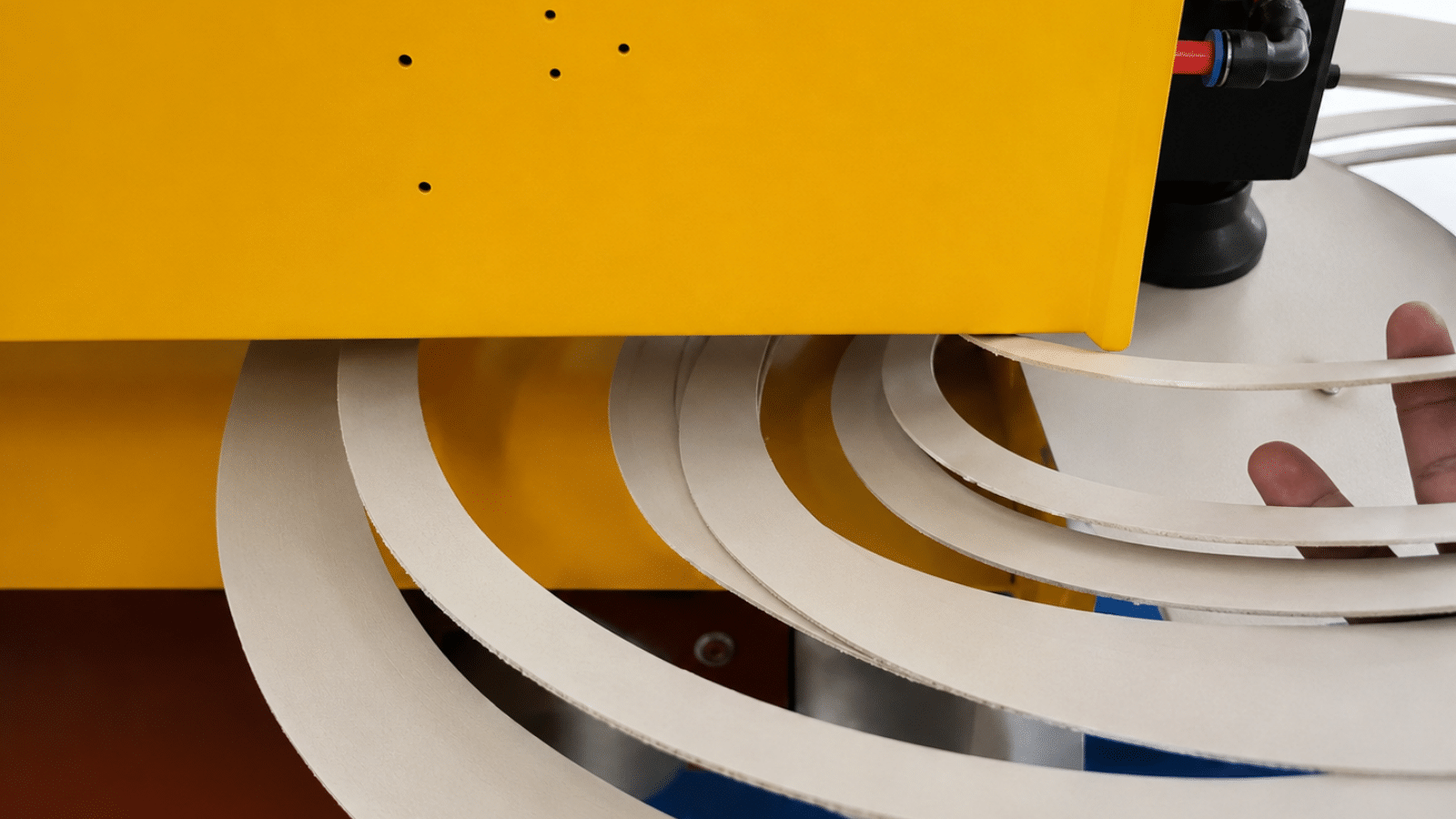

The TRANFOVIA Pressboard Circular Shearing Machine is designed for circular shearing of transformer insulation pressboard, epoxy board, and sheets with comparable strength. It processes 1-3 mm thick material and is available for workpiece diameters from Ø300 mm up to Ø3000 mm, depending on the selected model. The machine is intended to produce smooth, flat sheared edges while supporting repeatable batch processing of circular insulation components.

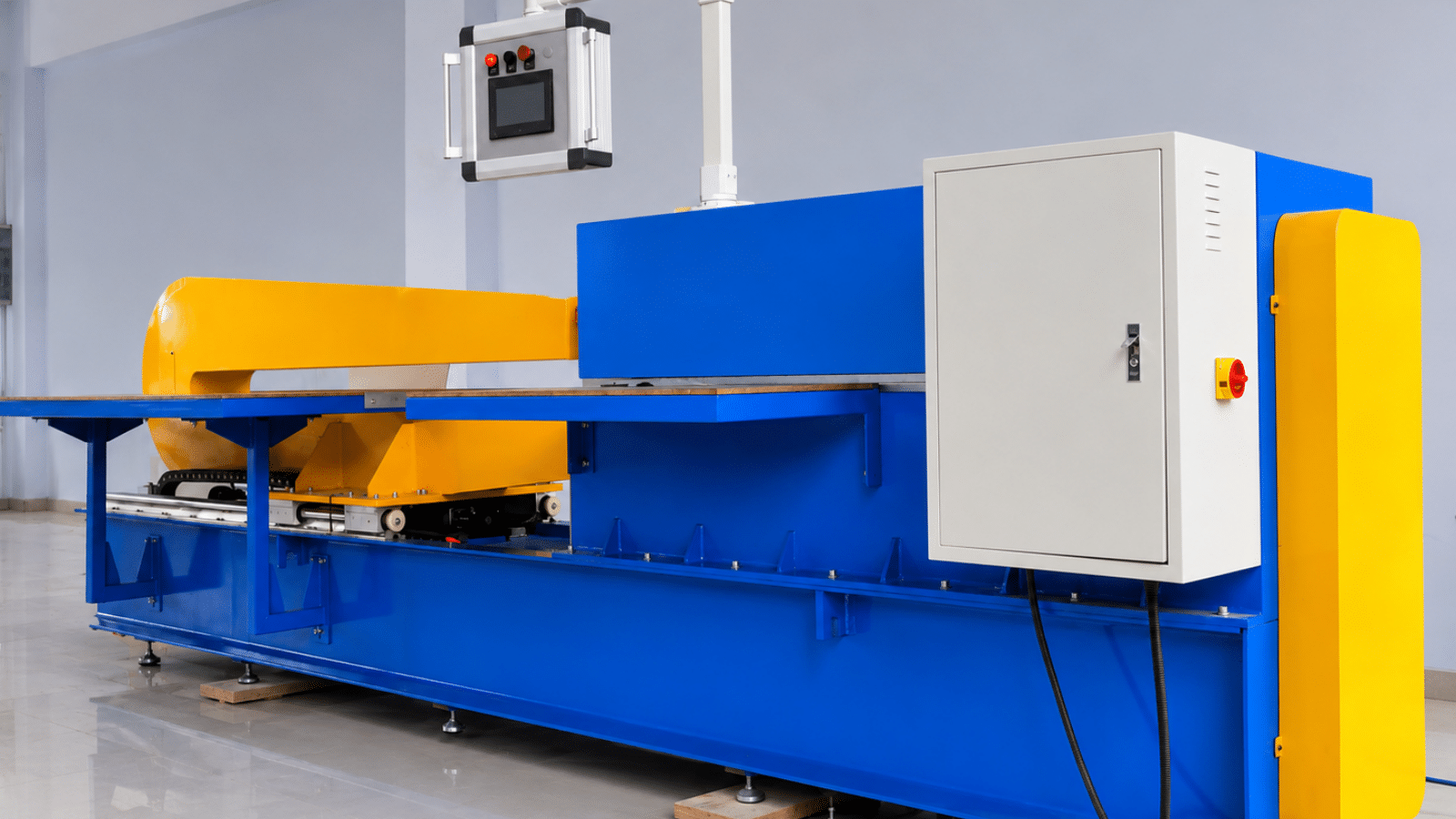

Two operating versions are available: a conventional model and a CNC circular shearing machine. The CNC version adds tailstock repeat positioning capability, while both versions retain the same core circular-shearing function.
Within a transformer insulation processing system, this machine is used when pressboard or epoxy board must be cut into circular or annular insulation parts before subsequent machining, marking, assembly, or bonding operations. Its Ø300-3000 mm diameter coverage and adjustable workpiece supports make it suitable for both smaller circular parts and large-diameter insulation boards, while the rear-frame adjustment can be locked for repeat production. For transformer manufacturing machinery buyers, the key selection factors are required diameter, material thickness, batch repeatability, and whether CNC repeat positioning is needed.
Two model ranges cover Ø300-2000 mm and Ø300-3000 mm pressboard diameters.
Suitable for transformer insulation pressboard, epoxy board and sheets of comparable strength.
The machine structure is designed around transformer insulation-process requirements to maintain a clean cutting result.
The rear frame can be adjusted and locked so the same diameter setting can be reused for repeated parts.
Adjustable-height supports on both sides help support insulation sheets during large-diameter circular shearing.
The CNC model provides tailstock repeat positioning accuracy of ±0.1 mm for repeated settings.
| Parameter | YJΦ300-2000 | YJΦ300-3000 |
| Sheared pressboard diameter | Ø300-2000 mm | Ø300-3000 mm |
| Sheared pressboard thickness | 1-3 mm | 1-3 mm |
| Sheared linear speed | 30 m/min | 30 m/min |
| Main motor power | 0.4 kW × 2 | 0.4 kW × 2 |
| Upper shear blade elevation distance | >20 mm | >20 mm |
| Upper pressing disc elevation distance | >15 mm | >15 mm |
| Sheared pressboard ellipticity | ±1 mm | ±1 mm |
| Tailstock repeat positioning accuracy | ±0.1 mm (CNC model) | ±0.1 mm (CNC model) |
The conventional version is suitable when the required diameter is set mechanically and the rear-frame position is locked for batch production. The CNC circular shearing machine is more appropriate when repeated diameter settings are changed frequently or repeat positioning is a higher priority. For the CNC model, the tailstock repeat positioning accuracy is ±0.1 mm; no separate overall cutting-accuracy value is provided for the conventional version.
These two machines address different cutting geometries.

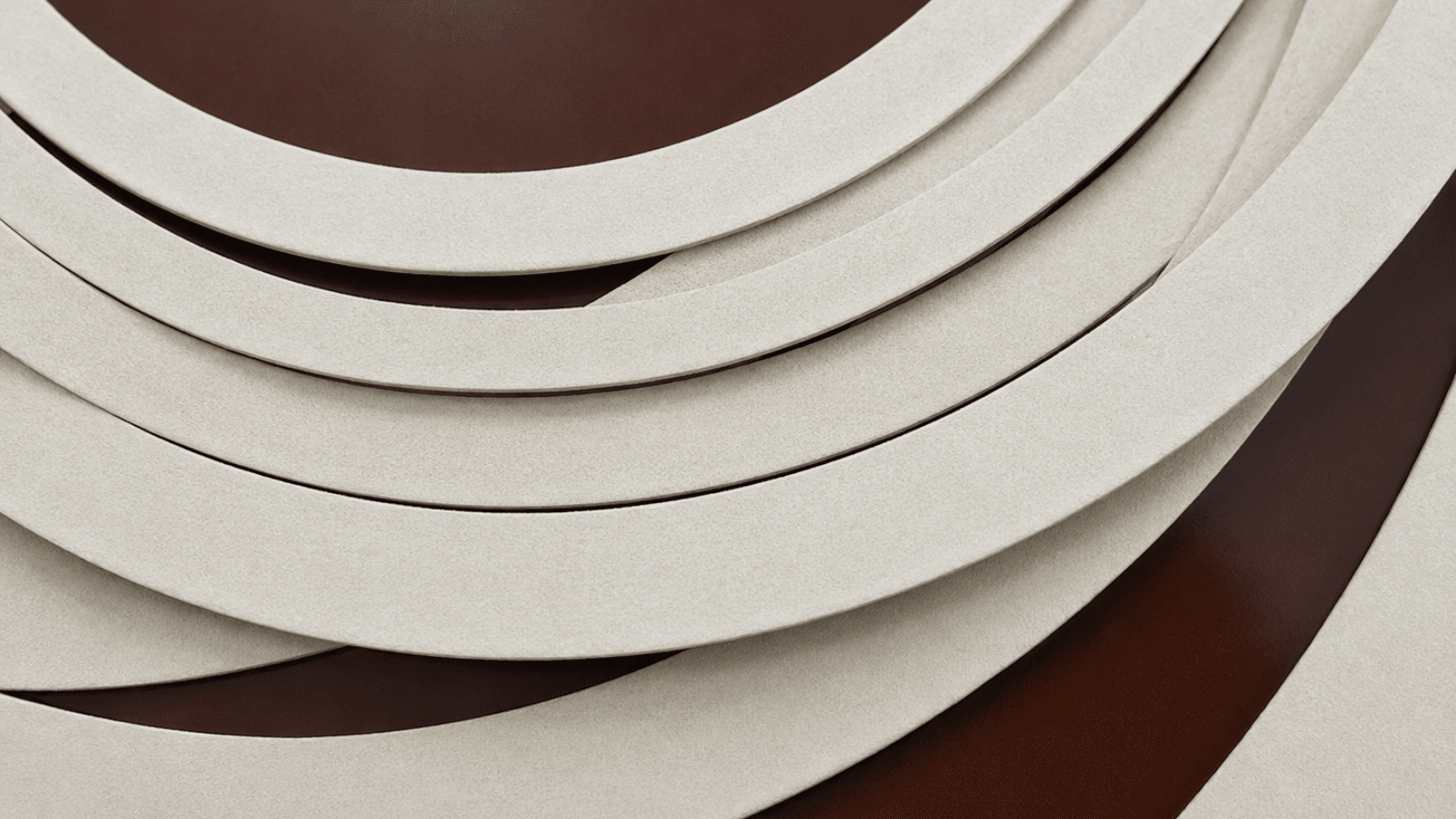

The Pressboard Circular Shearing Machine is used for circular or annular cutting of 1-3 mm pressboard and epoxy board, with diameter ranges up to Ø3000 mm.
The CNC Shearing Machine is used for straight shearing of thin insulation pressboard into rectangular or trapezoidal strips, with automatic feeding and a 5-500 mm strip-width range.
Choose the Circular Shearing Machine for round insulation parts and the CNC Shearing Machine for straight strip production.
It is designed for transformer insulation pressboard and epoxy board. Sheets with comparable strength can also be considered after process confirmation.
Two standard ranges are available: Ø300-2000 mm and Ø300-3000 mm.
The specified shearing thickness is 1-3 mm.
Both perform circular shearing. The CNC model adds tailstock repeat positioning with a specified repeat positioning accuracy of ±0.1 mm.
The machine has supports on both sides of the bedside box, and the support-rod height is adjustable for large-diameter workpieces.
Yes. It can serve as the circular-cutting stage for pressboard or epoxy-board insulation parts before downstream marking, machining or assembly operations.
