Multiple Strips Shaping Machine

Product Introduction

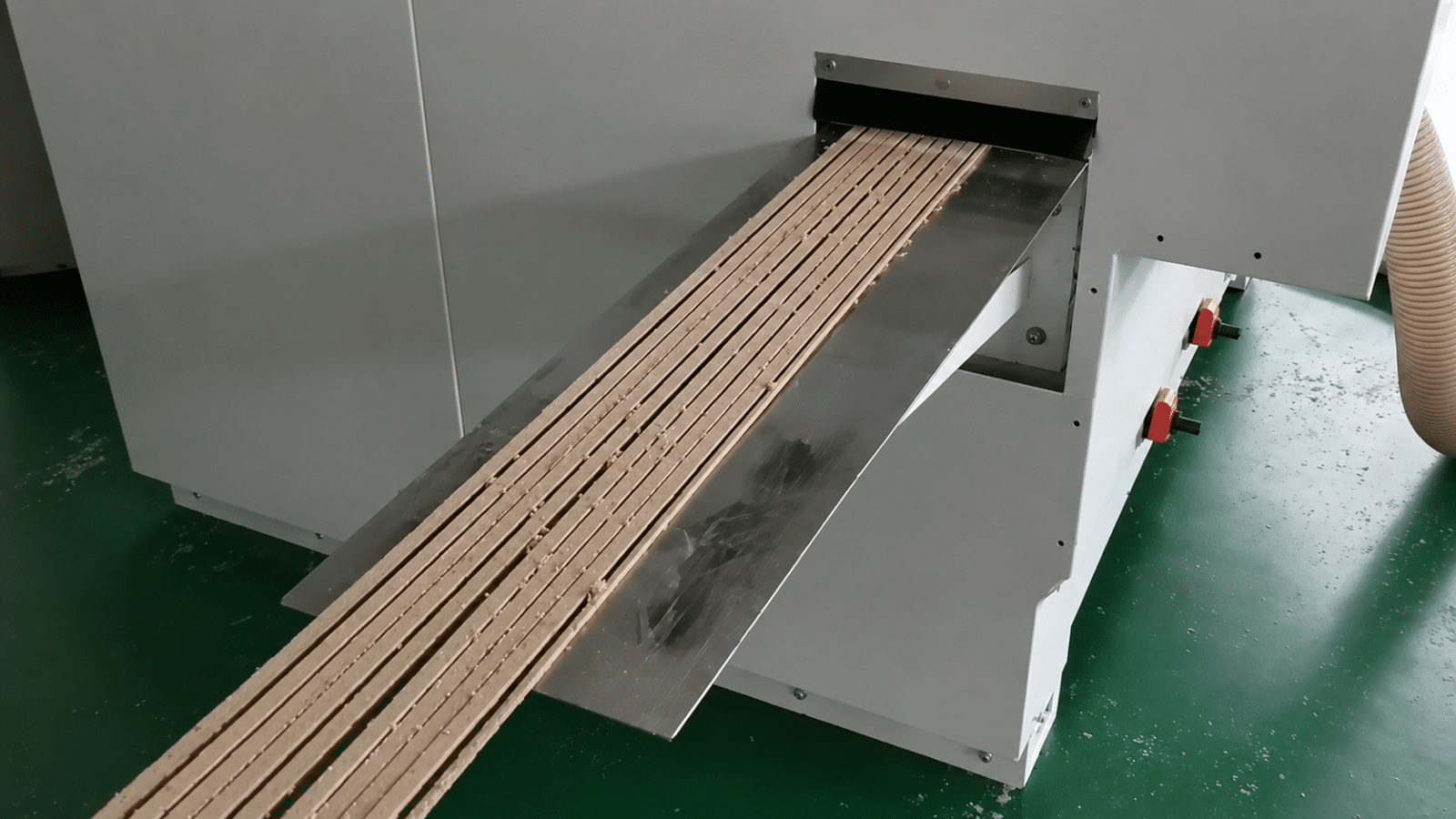

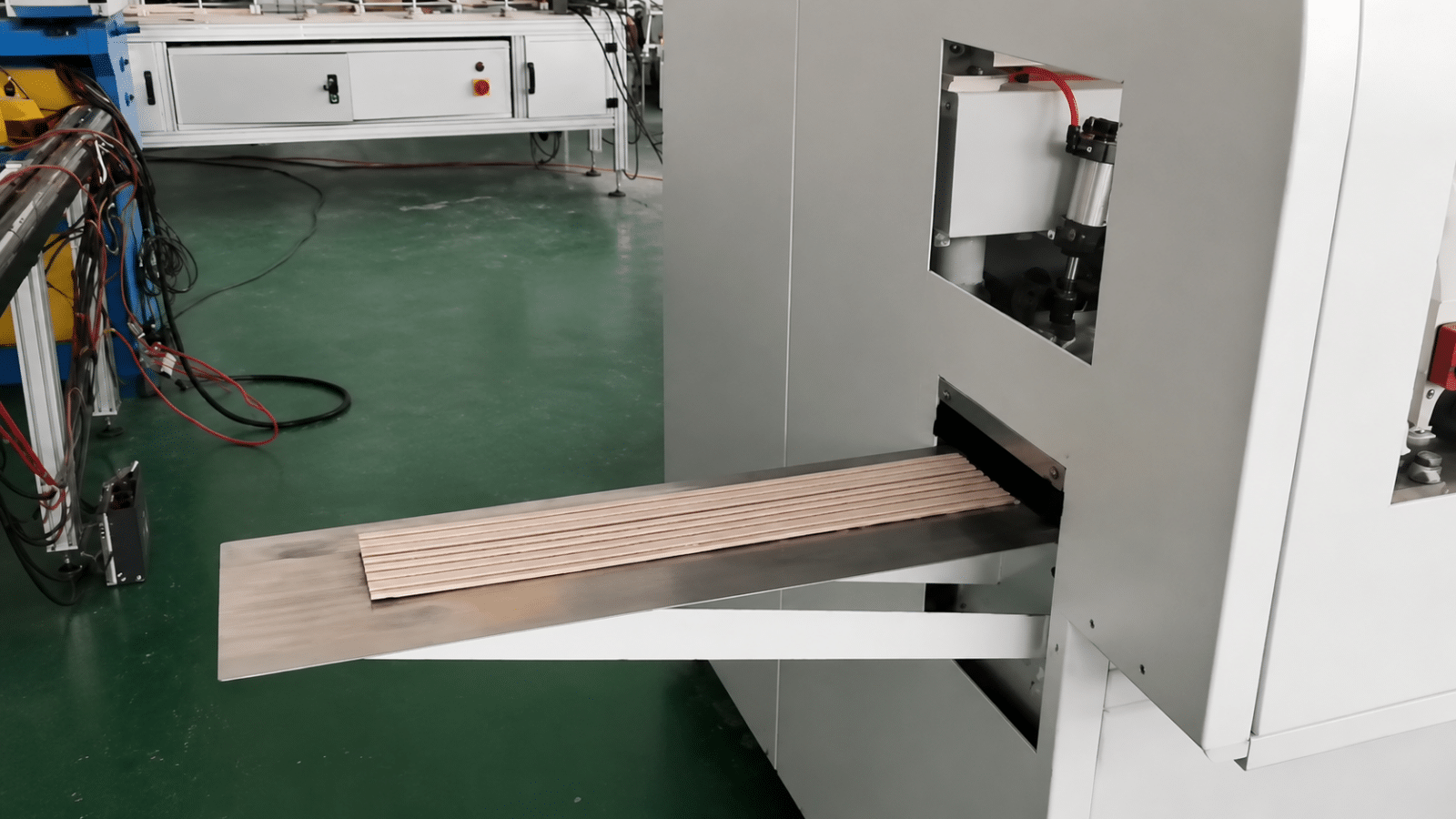

The TRANFOVIA Multiple Strips Shaping Machine combines pressboard slitting and strip shaping in one production step. Instead of feeding an individual pre-cut strip, the operator loads a wider pressboard section and configures the tooling for several finished strips. One feeding operation can produce 10-20 strips, while the stated maximum processing capacity is 22 strips.

Equipment Application

This machine is mainly used for batch production of transformer cooling-duct strips and insulation strips for distribution-transformer windings. It is selected when the buyer needs to convert a pressboard section into multiple finished strips in one feed, reduce separate slitting and shaping operations, and improve output and material use. The machine processes 3-15 mm thick pressboard, supports finished strip widths from 5 to 70 mm and accepts a maximum feeding width of 150 mm.

Main Features

1. Slitting and shaping in one feed.The pressboard is divided into multiple strips and shaped during the same feeding operation, reducing separate handling steps.
2. 0-20 strips per feeding operation.The standard production description covers simultaneous output of 10-20 strips, with a stated maximum capacity of 22 strips.
3. Batch-production efficiency.For the specified cooling-duct strip process, the machine is designed to achieve up to five times the efficiency of a single-strip shaping machine.
4. Improved material utilization. The integrated multi-strip layout is designed to increase pressboard utilization by approximately 20% in the specified process.

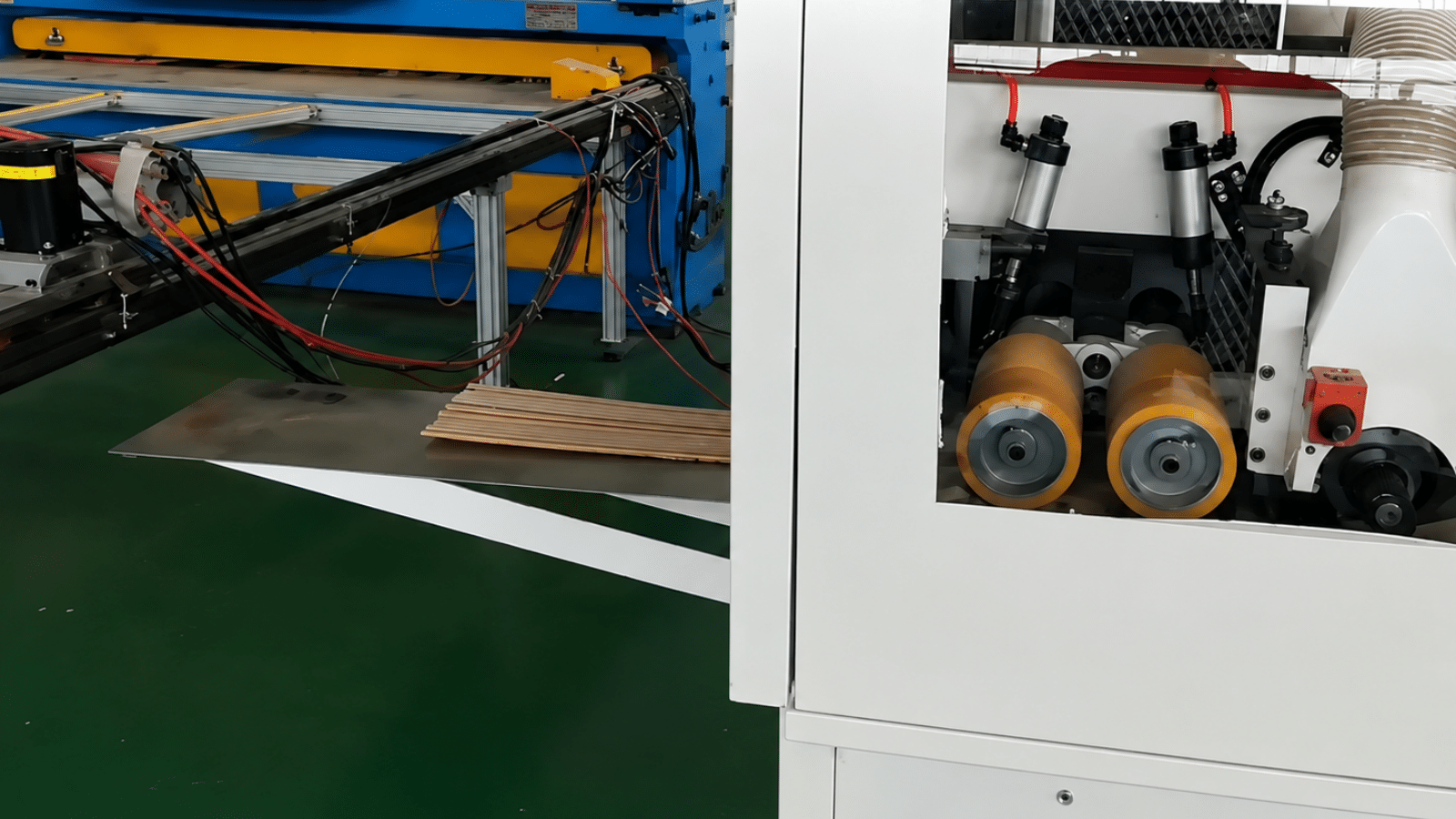

5. Automatic feeding option.Front and rear active shafts support continuous feeding, and an optional automatic feeding system can be configured.

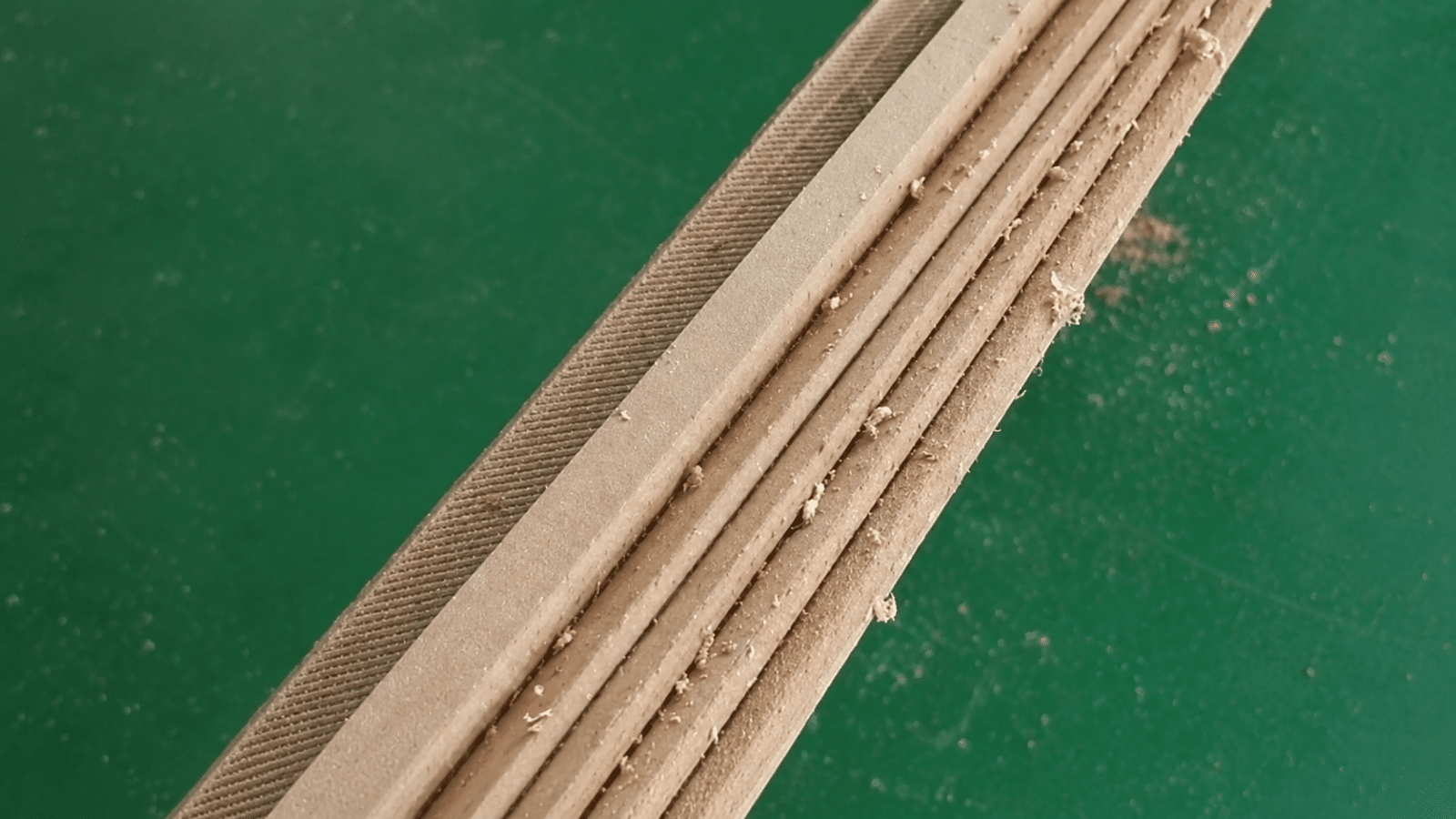

6. Smooth finished strips.The combined slitting and shaping process is designed to produce smooth strip surfaces without burrs.
7. Cooling and dust collection.Cooling, dust removal and a bag-type dust collector help control dust and support cutting-tool service life.

Technical Parameters

Multiple Strip vs. Single Strip Shaping Machine

Choose Multiple Strips Shaping Machine when strip output, repeat batch production and material utilization are more important than profile variety. Confirm the incoming pressboard width, the number and width of finished strips, tool spacing and the required output per shift.

Choose the Single Strip Shaping Machine instead when the main requirement is flexible production of T-type, dovetail, pigeon-tail or rectangular strips in smaller batches.

FAQ

1. How many strips can be produced in one feed?

The production description specifies 10-20 strips in one feeding operation, with a maximum processing capacity of 22 strips.

2. Does the machine perform both slitting and shaping?

Yes. Its main purchasing value is combining pressboard slitting and strip shaping in one pass.

3. What strip widths can be produced?

The stated finished strip width range is 5-70 mm, with a maximum incoming feeding width of 150 mm.

4. What is the processing speed?

The listed processing speed is 2-8 m/min.

5. When should the single-strip machine be selected instead?

Choose the single-strip machine when profile variety, wider strips up to 100 mm or T-type and dovetail processing are the main requirements.
