Insulation Parts Sawing and Milling Combined Machine

Insulation Parts Sawing and Milling Machine for Transformer Insulation Parts

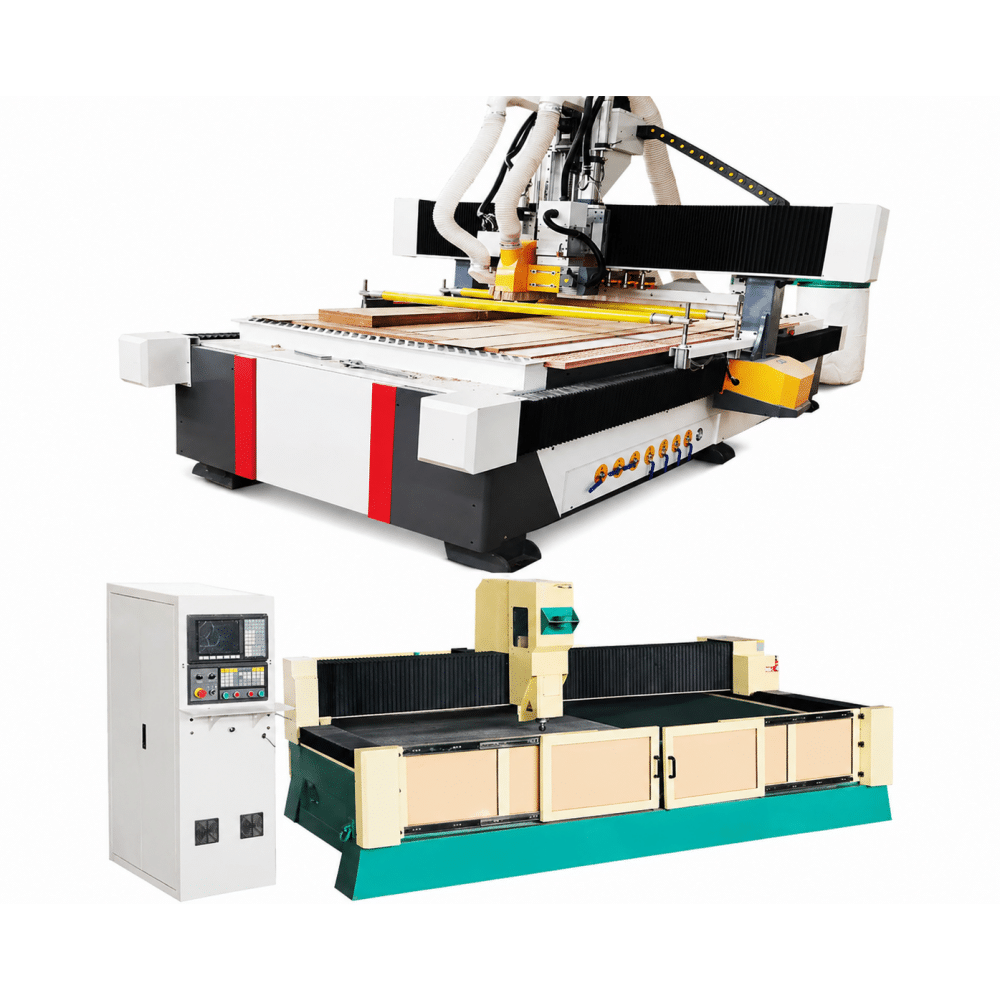

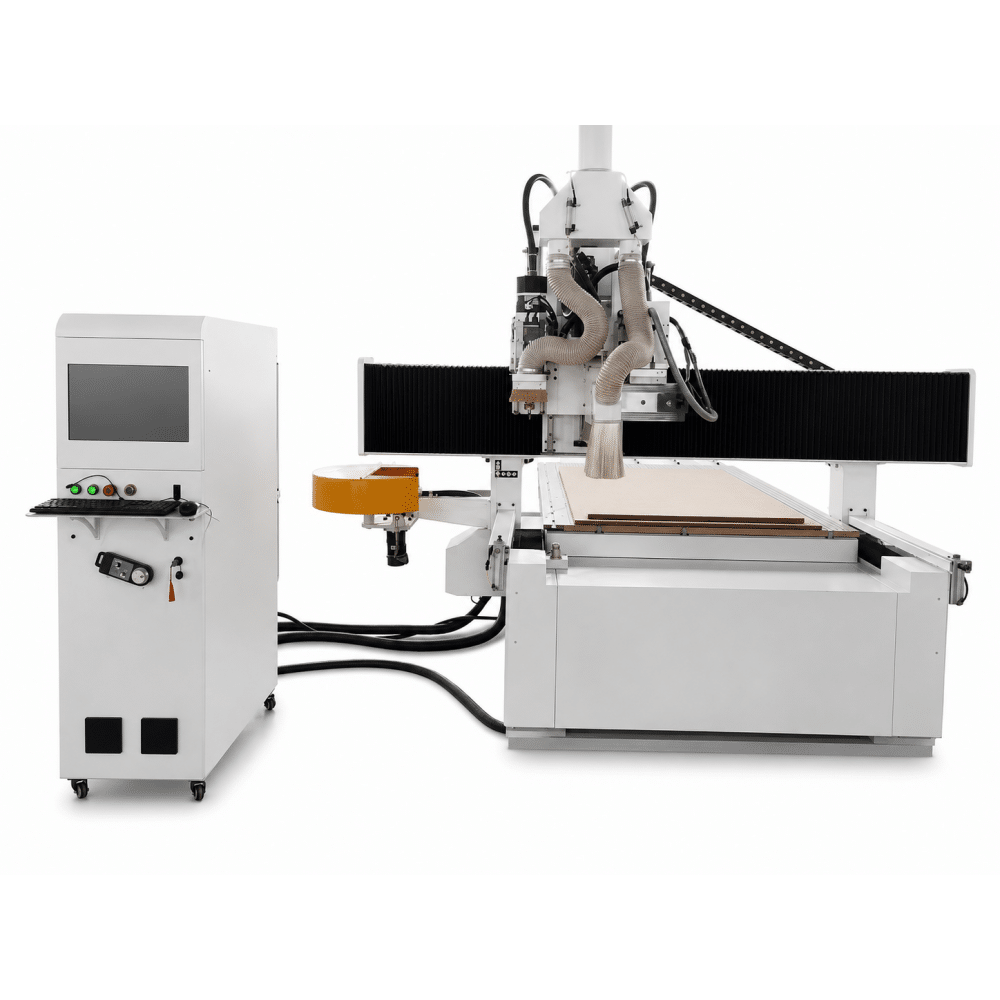

The TRANFOVIA Insulation Parts Sawing and Milling Machine is a full CNC-controlled machining solution for small transformer insulation components. It combines sawing, milling and drilling on one platform, allowing conductor clamps, small pads, horn parts and similar workpieces to be processed without moving between separate machines.

Vacuum adsorption is used to hold insulation plates during machining, while the sawing unit uses a 2 mm wide saw blade. The combined layout is intended for transformer manufacturers that need a compact CNC workstation for repeated small-part machining rather than a large-format insulation parts processing center.

Applications

This machine is used in transformer insulation workshops for machining smaller insulation components such as conductor clamps, small pads and horn parts. Within a transformer insulation processing system, it can serve as a combined CNC workstation where plate blanks require sawing, milled features and drilled holes before inspection and assembly. For buyers comparing transformer manufacturing machinery, it is most relevant when the workpieces are relatively small and the priority is to combine several machining operations on one machine.

Main Features

• Sawing, Milling and Drilling in One Machine

Three machining functions are integrated on one platform, reducing repeated transfer of small insulation parts between separate machines.

• Full CNC Control

The machine uses full numerical control for the machining process, making it suitable for repeated part programs and standardized workshop operation.

• Vacuum Adsorption Workholding

Insulation plates are held by vacuum adsorption during machining, providing a dedicated fixturing method for flat insulation workpieces.

• 2 mm Saw Blade Width

The sawing unit uses a 2 mm wide blade, keeping the sawing cut narrow when sizing or separating insulation parts.

• Designed for Small Transformer Insulation Parts

The machine is especially suited to conductor clamps, small pads, horn parts and other small insulation components rather than large end rings or platens.

• Combined-Machine Layout

By bringing several operations together, the machine reduces the need for separate dedicated equipment for every small-part machining step.

Technical Configuration

FAQ

1. What is an Insulation Parts Sawing and Milling Machine used for?

It is used to machine small transformer insulation components such as conductor clamps, small pads and horn parts, combining sawing, milling and drilling in one NC-controlled machine.

2. What machining functions are integrated in the machine?

The listed functions are sawing, milling and drilling.

3. How are insulation plates held during machining?

The machine uses vacuum adsorption to hold insulation plates during processing.

4. What is the saw blade width?

The specified saw blade width is 2 mm.

5. Is this machine intended for large transformer end rings?

Its stated application is smaller workpieces such as conductor clamps, small pads and horn parts. Large end rings and other large programmed parts are better matched to the separate Insulation Parts Processing Center.

6. How is this machine different from the CNC Insulation Parts Processing Center?

The sawing and milling machine is a combined workstation for smaller parts and integrates sawing, milling and drilling. The processing center is positioned for large insulation parts and complex programmed contour, groove, drilling and planar machining.

7. Can this machine be included in a transformer insulation processing system?

Yes. It can serve as the small-part machining stage within a broader insulation-processing workshop, alongside pressboard cutting, end-ring machining and other dedicated insulation equipment.
