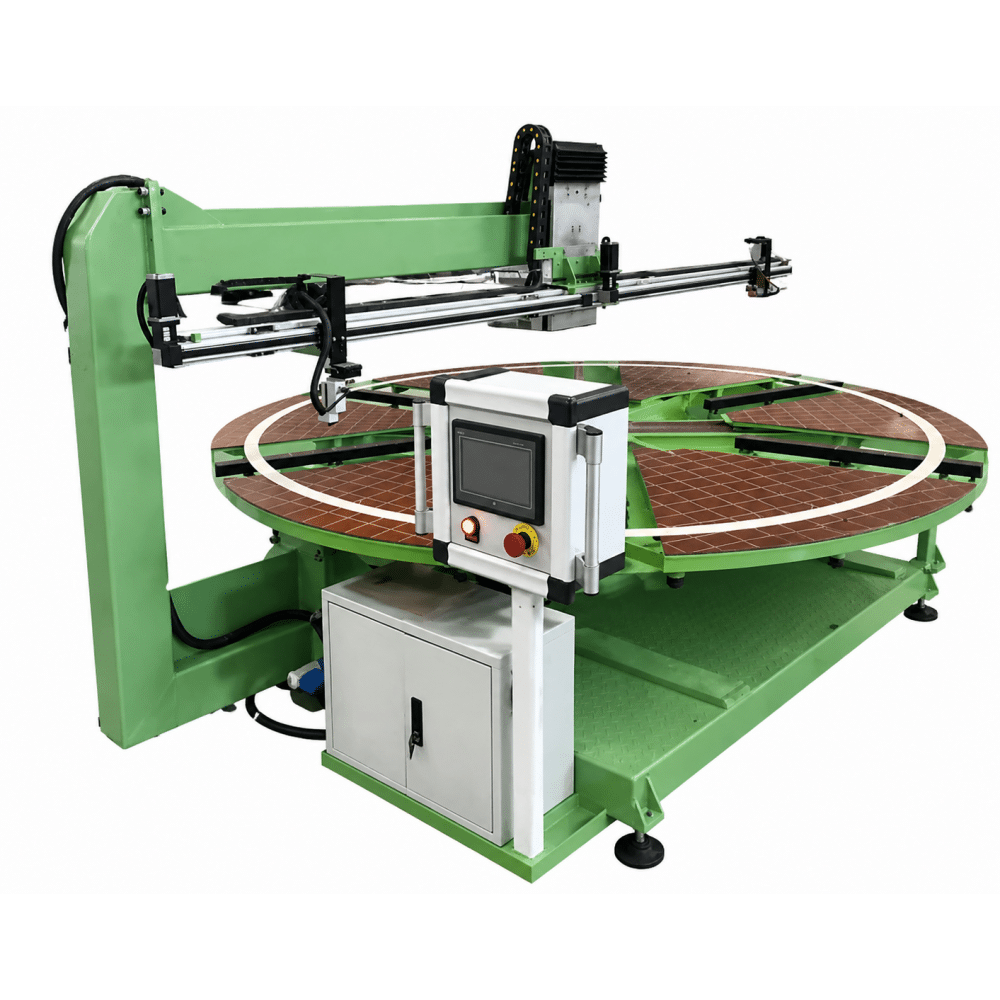

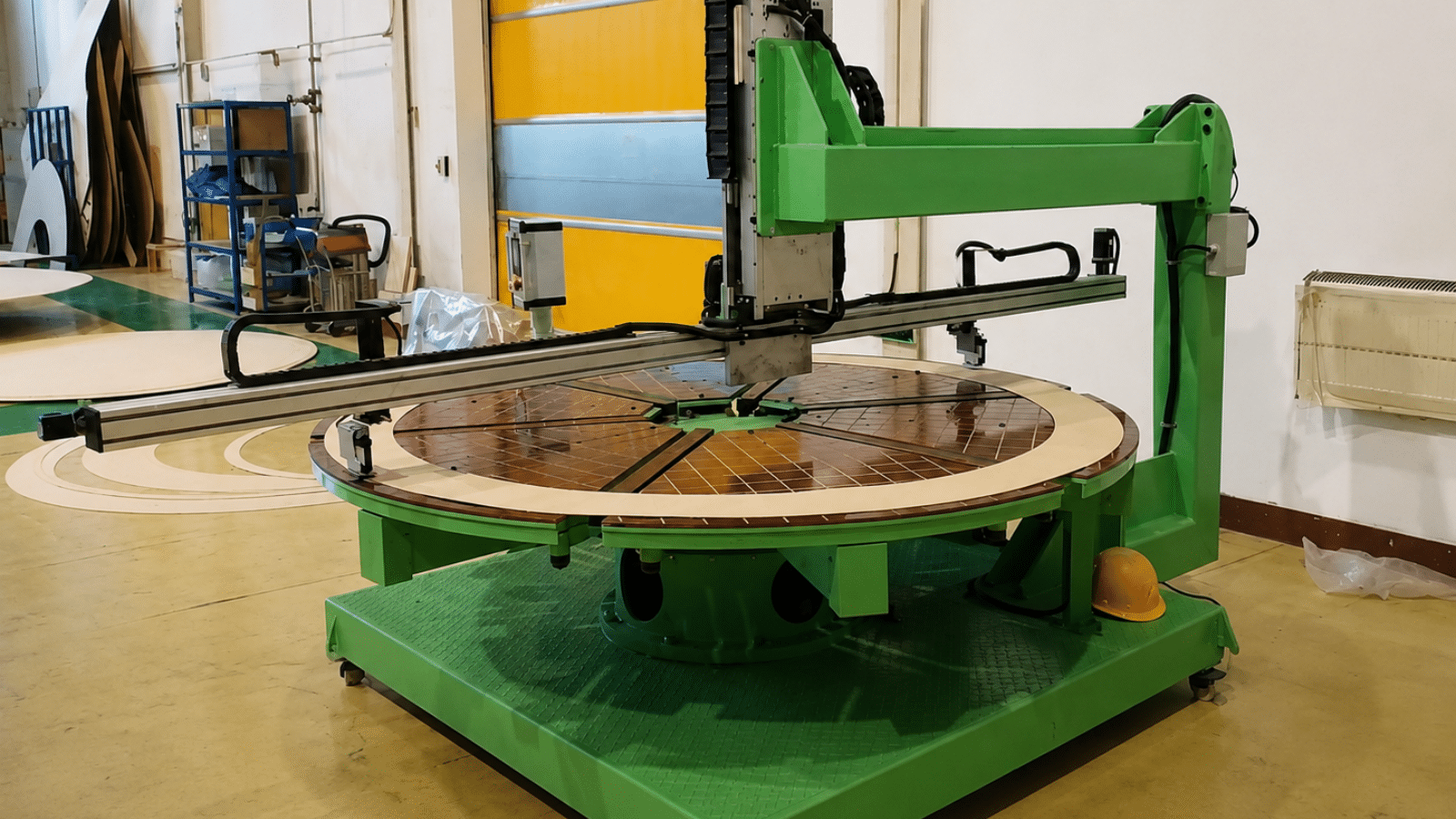

The End Ring Equal Division Draw Line Machine is a precision device designed for marking and dividing transformer insulation end rings. This automatic end ring dividing machine for transformer applications enables accurate equal division and line marking, ensuring consistency and efficiency in insulation component processing.
As a critical tool in transformer insulation end ring processing, it significantly improves layout accuracy, reduces manual errors, and enhances production efficiency.

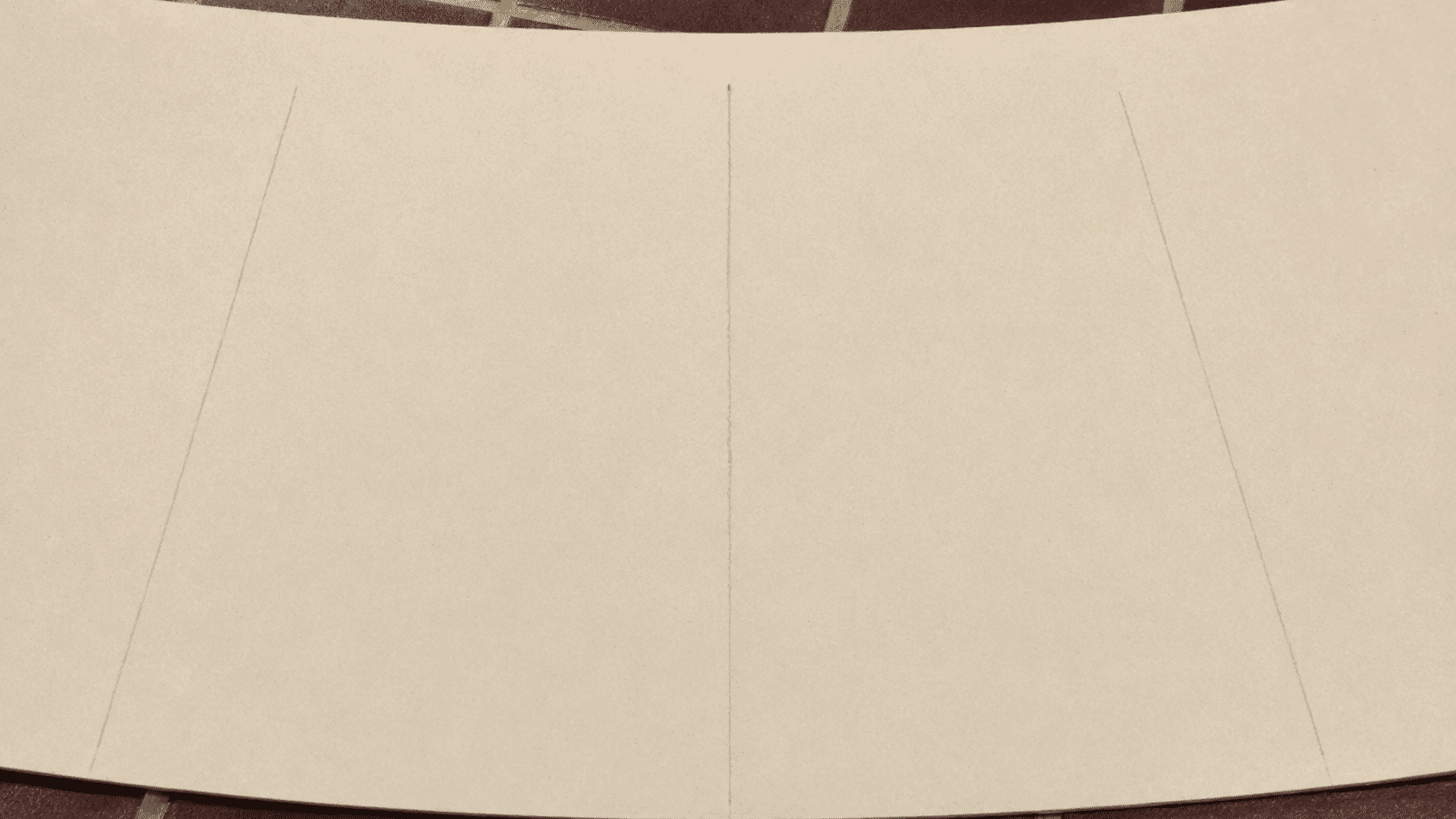

This end ring equal division draw line machine is mainly used to divide insulation end rings into equal parts and automatically draw precise marking lines. By inputting the division number, inner diameter (ID), and outer diameter (OD) via the touch screen, the machine completes the end ring marking and layout process efficiently and accurately.
The machine achieves an angular accuracy of ±0.02°, making it ideal for high precision end ring dividing applications in transformer manufacturing.
With touch screen input for division parameters, the machine automatically performs marking, improving efficiency and reducing manual labor in CNC end ring marking systems.
Each workpiece can be completed in approximately 3 minutes, significantly increasing productivity in transformer insulation production lines.

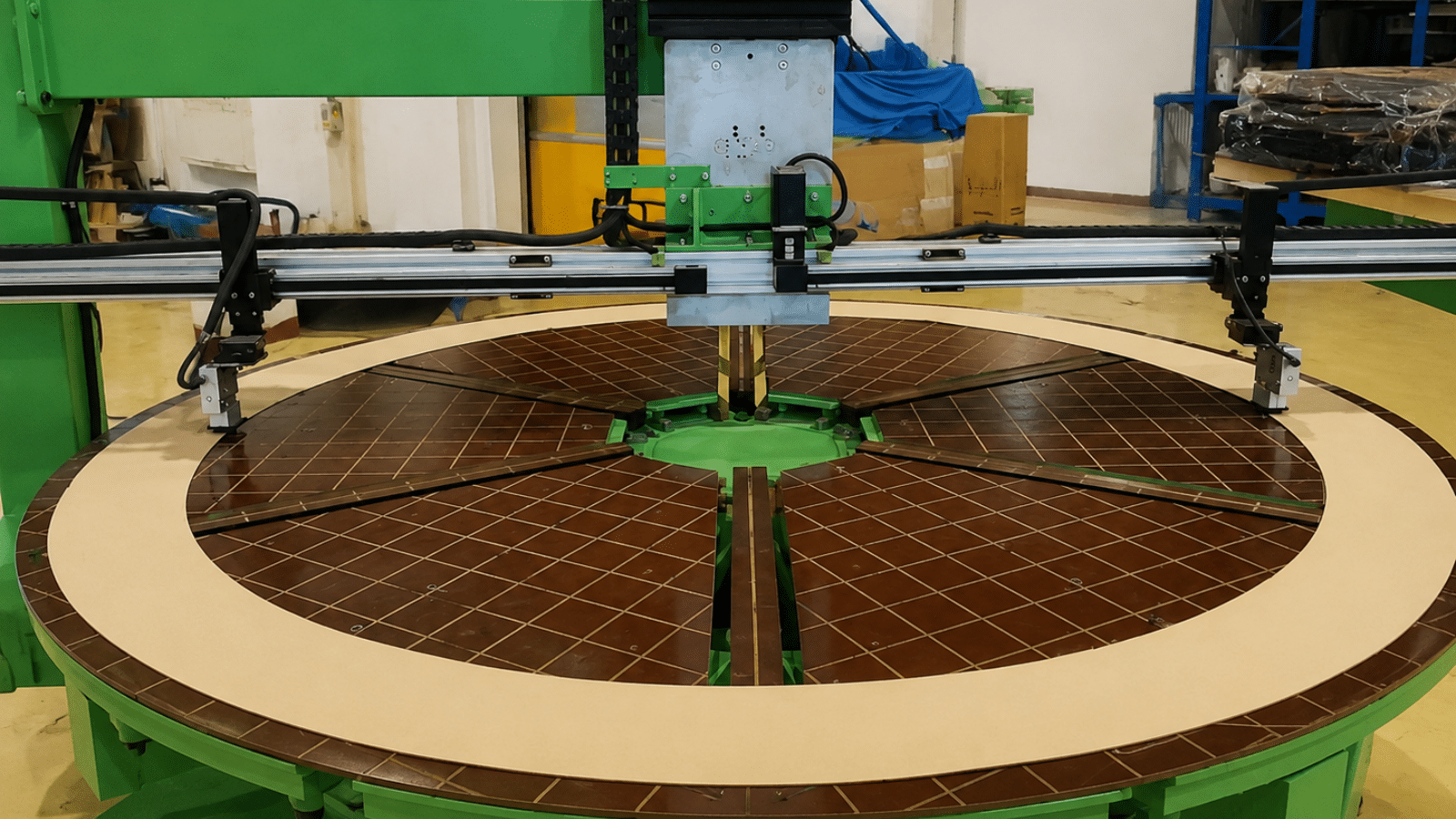

Supports a wide ID adjustment range from Φ500 mm to Φ3200 mm, suitable for various transformer end ring sizes.
The inkjet head height can be adjusted from 10–80 mm, ensuring compatibility with different workpiece thicknesses.

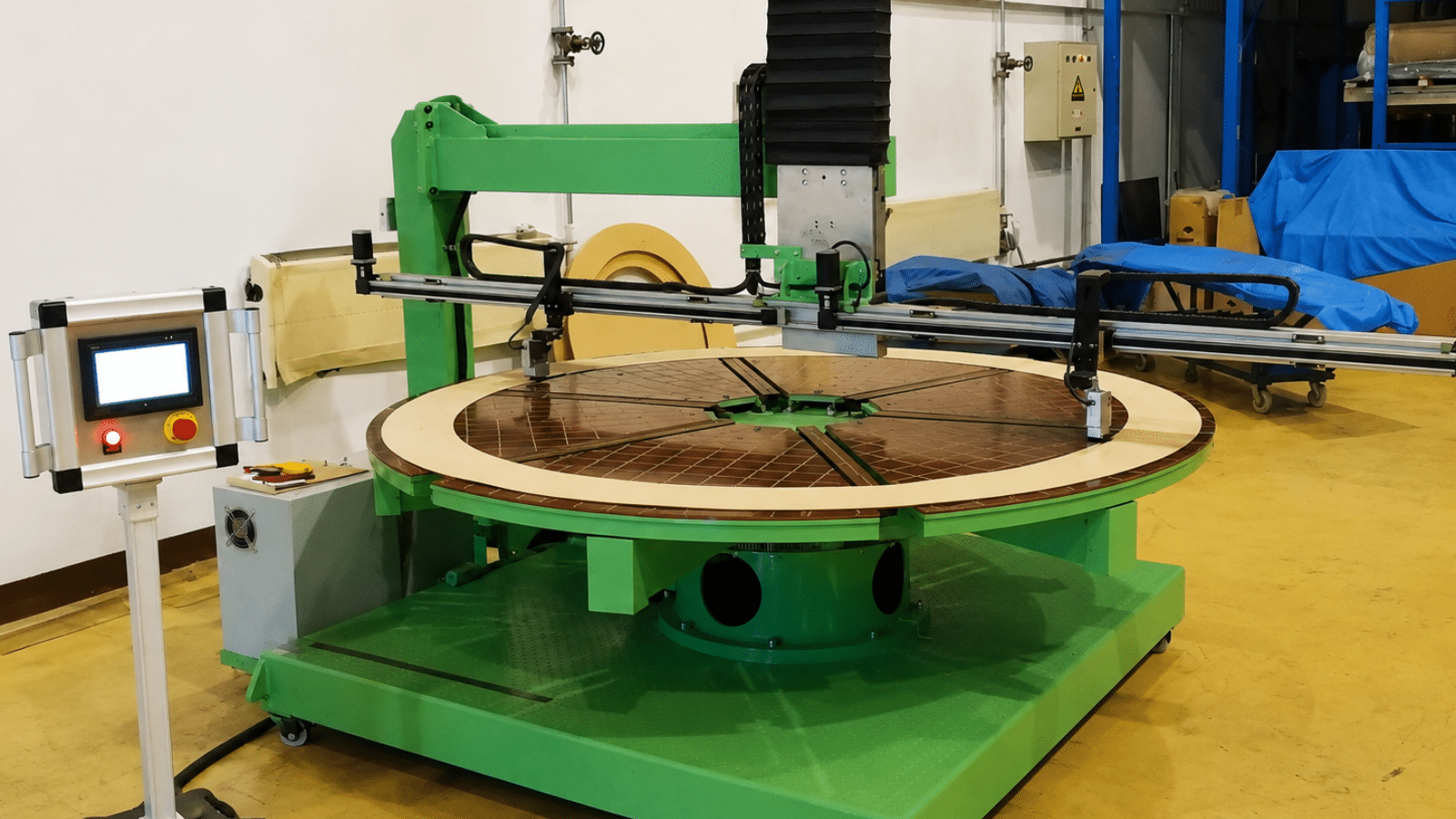

The machine is designed with a stable worktable and simple operation interface, ensuring reliable performance in industrial end ring marking applications.
Working Efficiency: Approx. 3 mins/pc
Line Width: ≤ 1 mm
Line Accuracy: ±0.02°
Block Width: 35–50 mm
ID Adjustment Range: Φ500–Φ3200 mm
Inkjet Head Adjustment: 10–80 mm
Worktable Height: 750 mm
Dimensions (L×W×H): 6000×3400×1200 mm
Power Supply: AC220V 50Hz
An end ring equal division draw line machine is used to divide transformer insulation end rings into equal sections and mark precise layout lines automatically.
Accurate division ensures proper alignment during assembly, improving insulation performance and structural stability in transformers.

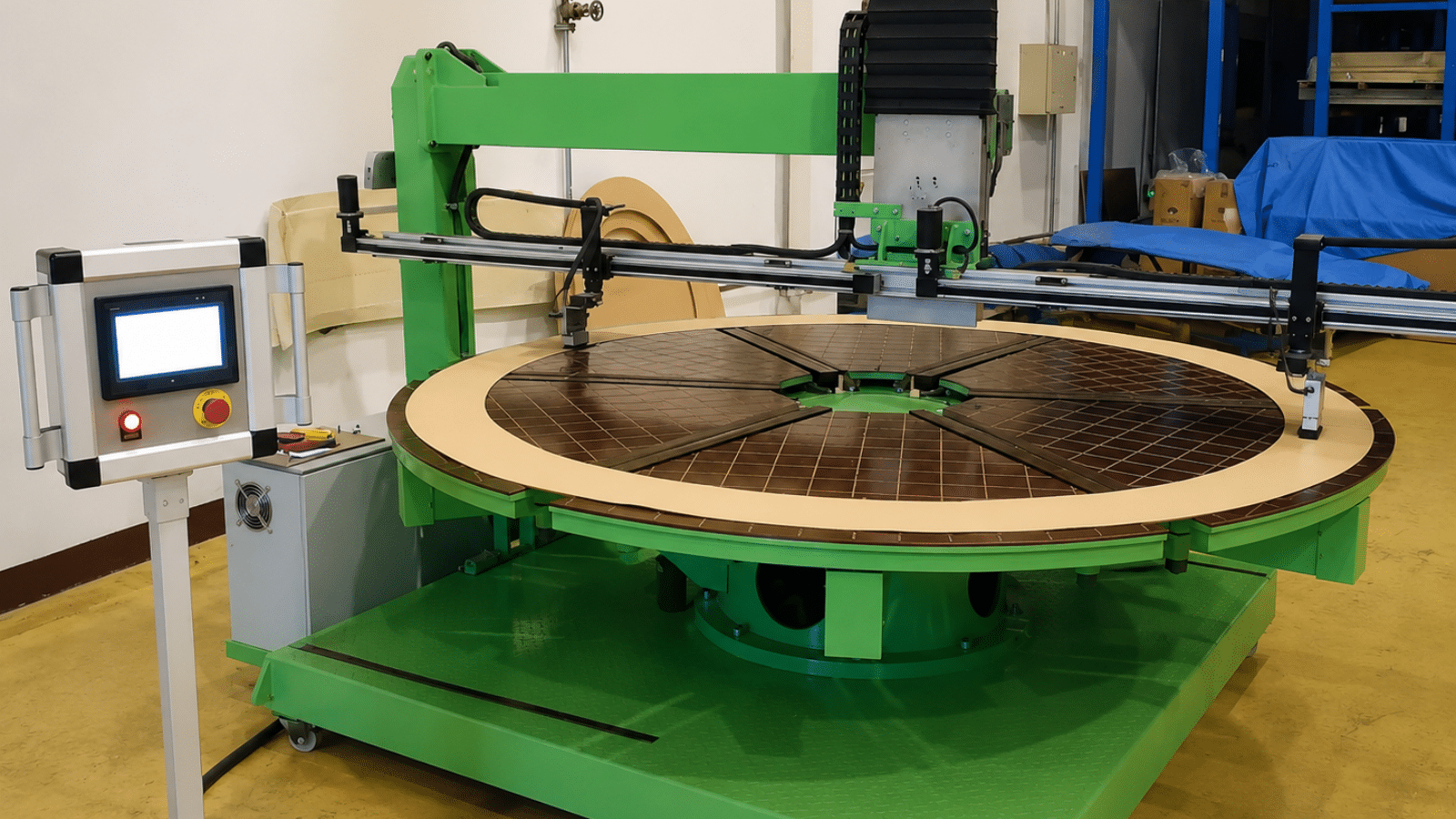

The machine uses CNC control and precise positioning systems to achieve marking accuracy up to ±0.02°, ensuring consistent results.
This end ring marking machine supports inner diameters from Φ500 mm to Φ3200 mm, covering most transformer applications.
Yes, operators only need to input parameters such as division number, ID, and OD. The machine completes the marking process automatically.
The automatic end ring dividing machine improves accuracy, reduces labor intensity, increases efficiency, and minimizes human error.
