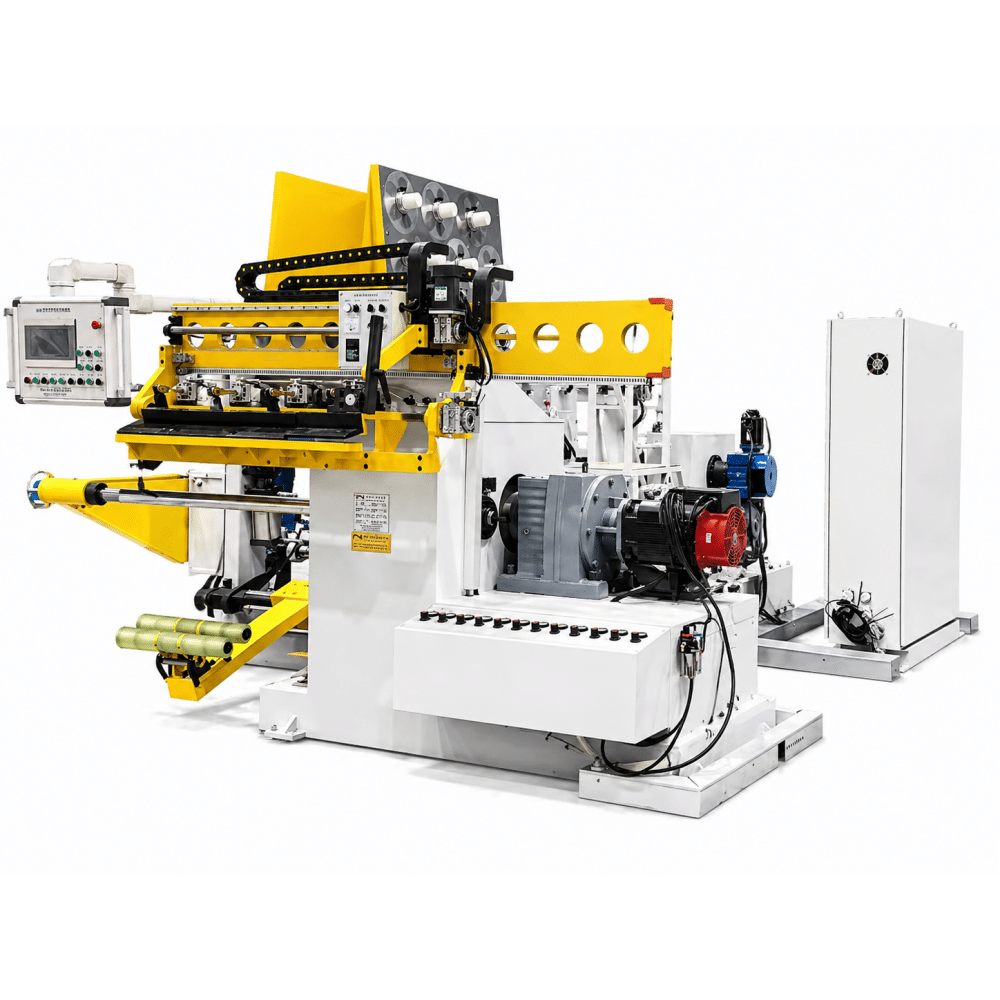

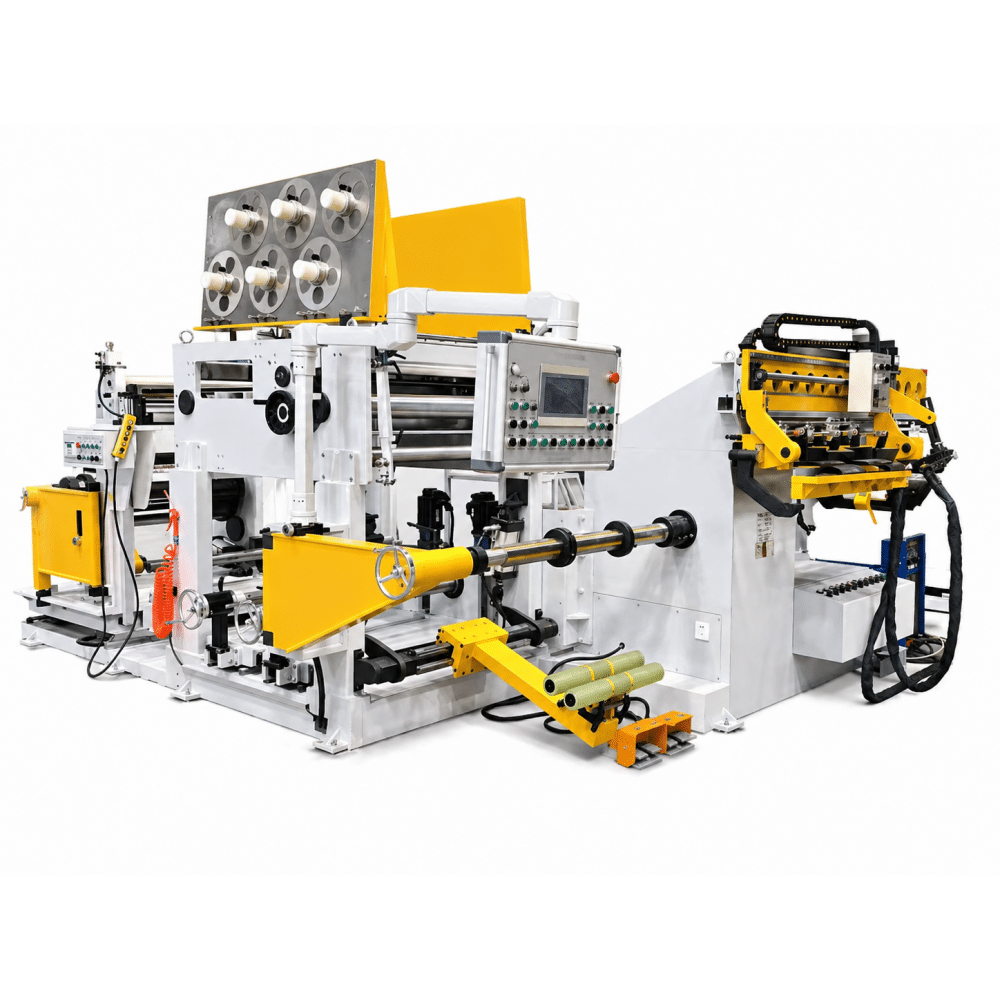

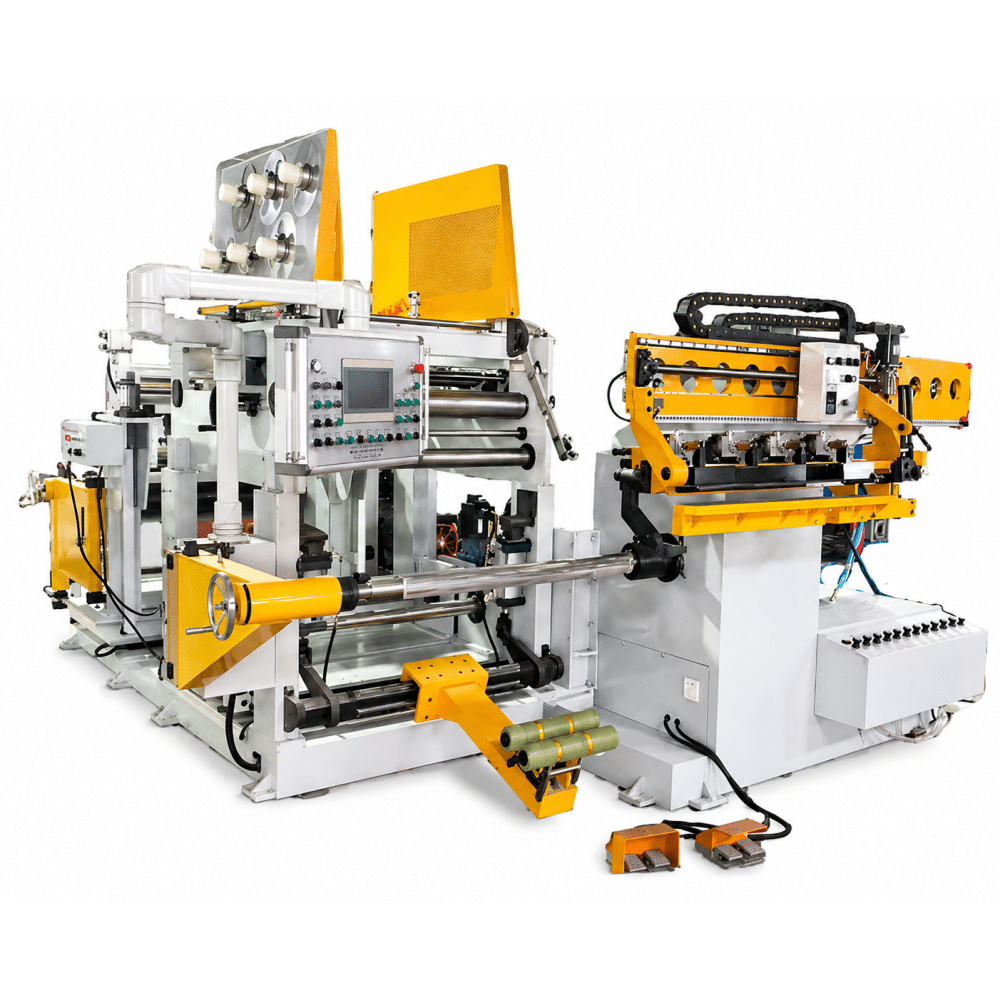

The Single Layer Foil Winding Machine is engineered for precise and efficient winding of low-voltage transformer coils. Designed for both copper and aluminum foil applications, this transformer foil winding machine delivers stable tension control, accurate alignment, and high production efficiency, making it an essential solution for modern transformer manufacturing lines.
This foil winding machine for transformer coils is widely used in:
It is especially suitable for manufacturers seeking consistent coil quality and optimized production processes.
✔ Precision Deviation Correction
Ensures no misalignment during the entire winding process, improving coil consistency and reducing defects.
✔ Advanced Tension Control System
Maintains stable foil tension throughout operation, supporting high-quality copper and aluminum foil winding.
✔ Automatic Edge Alignment
Enhances winding accuracy and minimizes material waste, ideal for precision transformer coil manufacturing.
✔ High Efficiency & Easy Operation
User-friendly interface allows operators to quickly set parameters and manage the winding process efficiently.
✔ Fast Installation & Commissioning
The machine can be installed and put into operation within 4 hours, reducing downtime and improving ROI.
✔ Operator Training Support
Professional training ensures smooth operation and maximizes equipment performance.
Copper foil: 0.35 – 2.2 mm (single layer)
Aluminum foil: 0.35 – 2.6 mm (single layer)
| SN | Name | Model | Unit | Quantity | Remarks |
| 1 | Body of foil winding machine | DHR-4-1400S | Piece | 1 | Main component of equipment |
| 2 | Welding frame and main unit | DHR-4-1400S | Set | 1 | Main component of equipment |
| 3 | Uncoiler | DHR-4-1400S | Set | 1 | Main component of equipment |
| 4 | Layer insulation trolley | DHR-4-1400S | Set | 1 | Main component of equipment |
| 5 | Hydraulic coil lifter | — | Set | 1 | Auxiliary tool |
| 6 | Argon arc welder | WSME-500 | Set | 1 | Dedicated device |
| 7 | Cooling water system | In-built gadgets
|
Set | 1 | Dedicated device |
| 8 | Square shaft (with fixture) | 60×60×1880 | Set | 1 | Dedicated accessory |
| 9 | Foil support connector | — | Piece | 2 | Dedicated accessory |
| 10 | Foil support wrench | — | Piece | 1 | Dedicated tool |
| 11 | Machine operation manual | — | Set | 1 | Delivery documentation |
| 12 | Argon welding materials | — | Set | 1 | Delivery documentation |
| 13 | Internal hexagonal wrench | — | Set | 4 | Tool (placed in water tank) |
| 14 | Vise grip pliers | — | Set | 2 | Tool (placed in water tank) |
Q:What is the difference between foil winding and wire winding?
A:Foil winding provides better current distribution and mechanical strength, making it ideal for LV transformer coils, while wire winding is used for high-voltage coils.
Q:Can this machine handle both copper and aluminum foil?
A:Yes, this transformer foil winding machine is compatible with both copper and aluminum foil materials.
Q:Is installation complicated?
A:No, the machine is designed for quick installation and can typically be operational within 4 hours.
