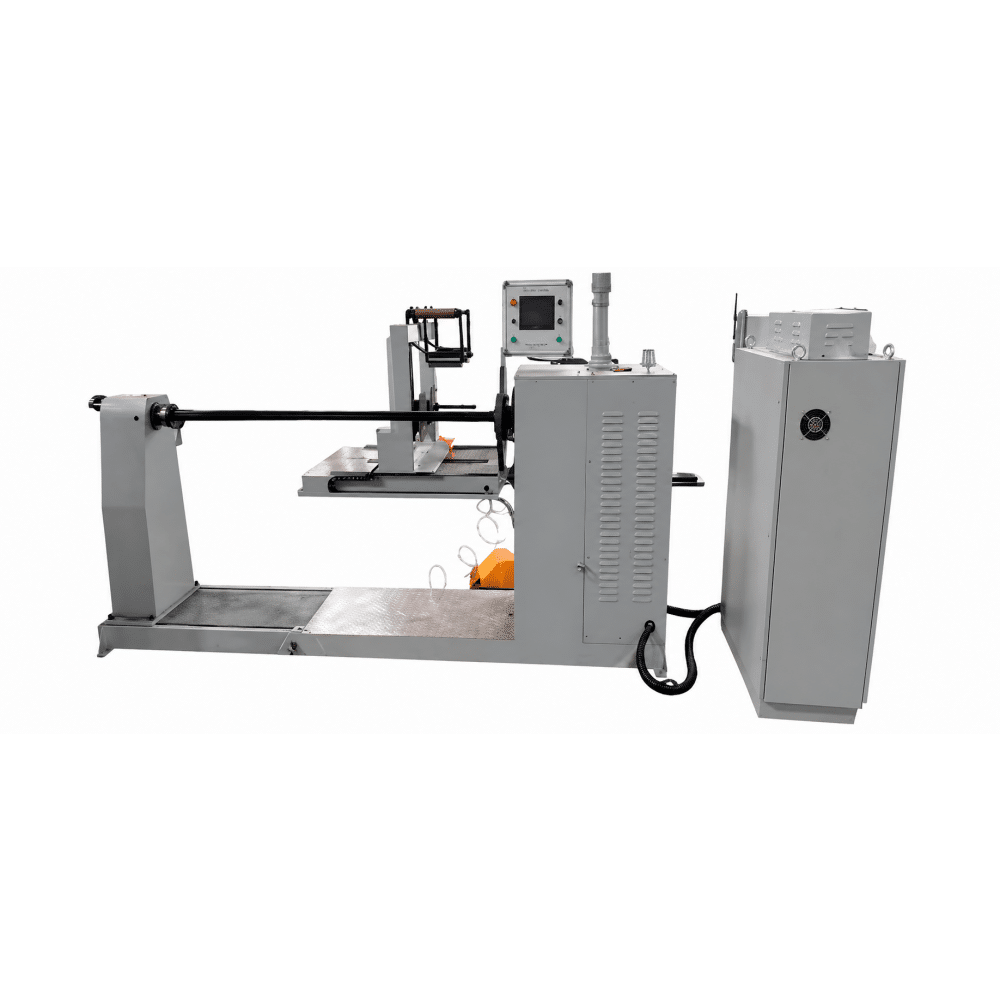

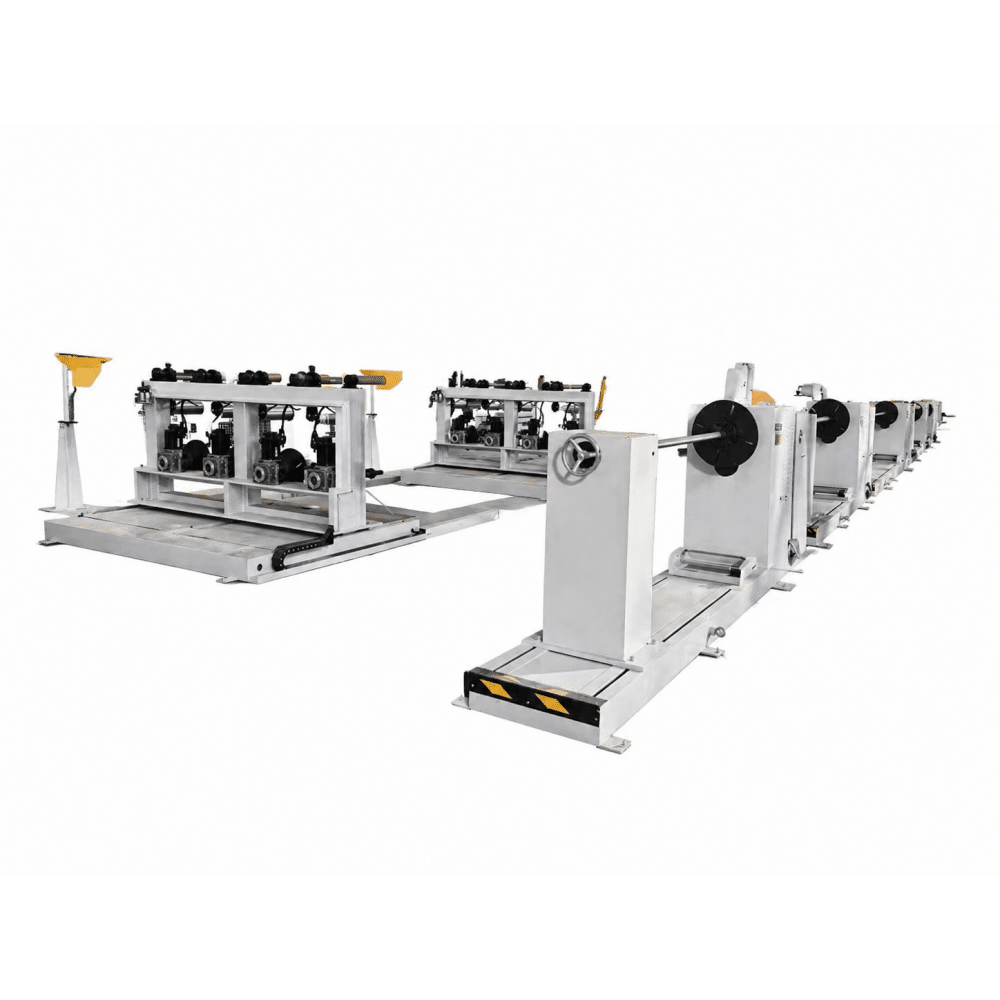

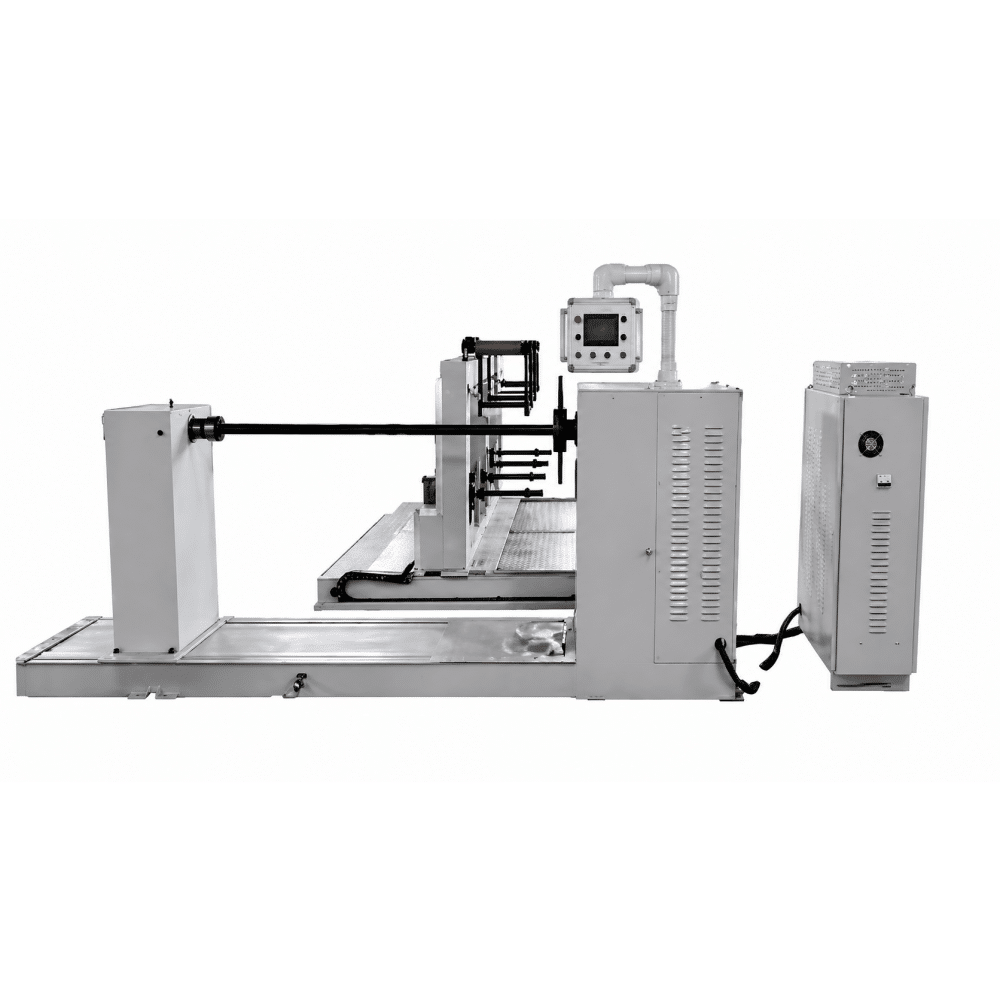

The Series High and Low Pressure Winding Machine is designed for high-precision winding of transformer coils in both high-voltage (HV) and low-voltage (LV) applications. Featuring stable torque output and variable speed control, it ensures consistent winding quality and reliable performance for demanding industrial transformer production environments.
| Model Parameter |
2T Model | 3T Model |
| Main Unit Power | 7.5 kW | |
| Main Bearing Capacity | 2000 kg | 3000 kg |
| Maximum Torque | 2000 N·m | 4000 N·m |
| Spindle Speed (Low Gear) | 0–46 r/min | 0–28 r/min |
| Spindle Speed (High Gear) | 0–168 r/min | 0–90 r/min |
| Speed Regulation System | Multi-gear shifting + frequency control | Multi-gear shifting + frequency control |
| Square Shaft (Standard) | 40 × 40 × 1000 mm | 40 × 40 × 1500 mm |
| Tailstock Adjustment Range | 550–1450 mm | 1050–1950 mm |
| Machine Dimensions (L × W × H) | 3850 × 800 × 1300 mm | 3850 × 800 × 1350 mm |
| Spindle Height | 1000 mm | |
| Maximum Coil Turns (Counter) | 9999.9 | |
| Counting Function | Reversible counting with power-off memory | Reversible counting with power-off memory |
Q1: What is the main feature of the Series High and Low Pressure Winding Machine?
A1: The Series High and Low Pressure Winding Machine is designed for high-precision winding of transformer coils in both high-voltage (HV) and low-voltage (LV) applications. It provides high torque, variable speed control, and reliable winding quality, making it ideal for demanding industrial transformer production.
Q2: What applications is the Series High and Low Pressure Winding Machine suitable for?
A2: This machine is perfect for high-voltage (HV) and low-voltage (LV) transformer coil production. It is commonly used in the manufacturing of power transformers and distribution transformers, ensuring precise and efficient winding for a variety of coil types.
Q3: What is the maximum torque of the Series High and Low Pressure Winding Machine?
A3: The 2T model has a maximum torque of 2000 N·m, while the 3T model provides a maximum torque of 4000 N·m. These high torque levels ensure stable and consistent winding performance for both HV and LV coils.
Q4: How does the speed regulation work in the Series High and Low Pressure Winding Machine?
A4: The machine features multi-gear shifting combined with frequency control for precise speed regulation. The spindle speed in low gear ranges from 0 to 46 r/min for the 2T model and 0 to 28 r/min for the 3T model, while high gear speeds go from 0 to 168 r/min for the 2T and 0 to 90 r/min for the 3T.
