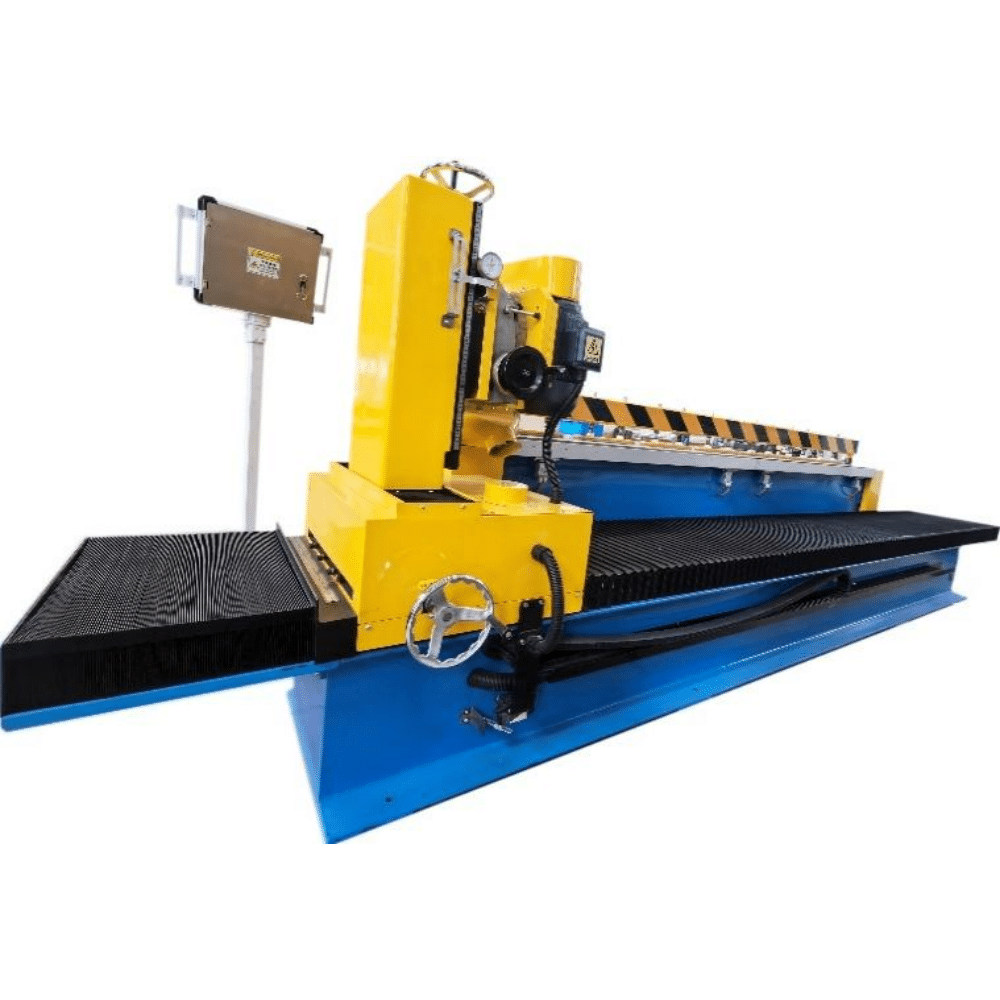

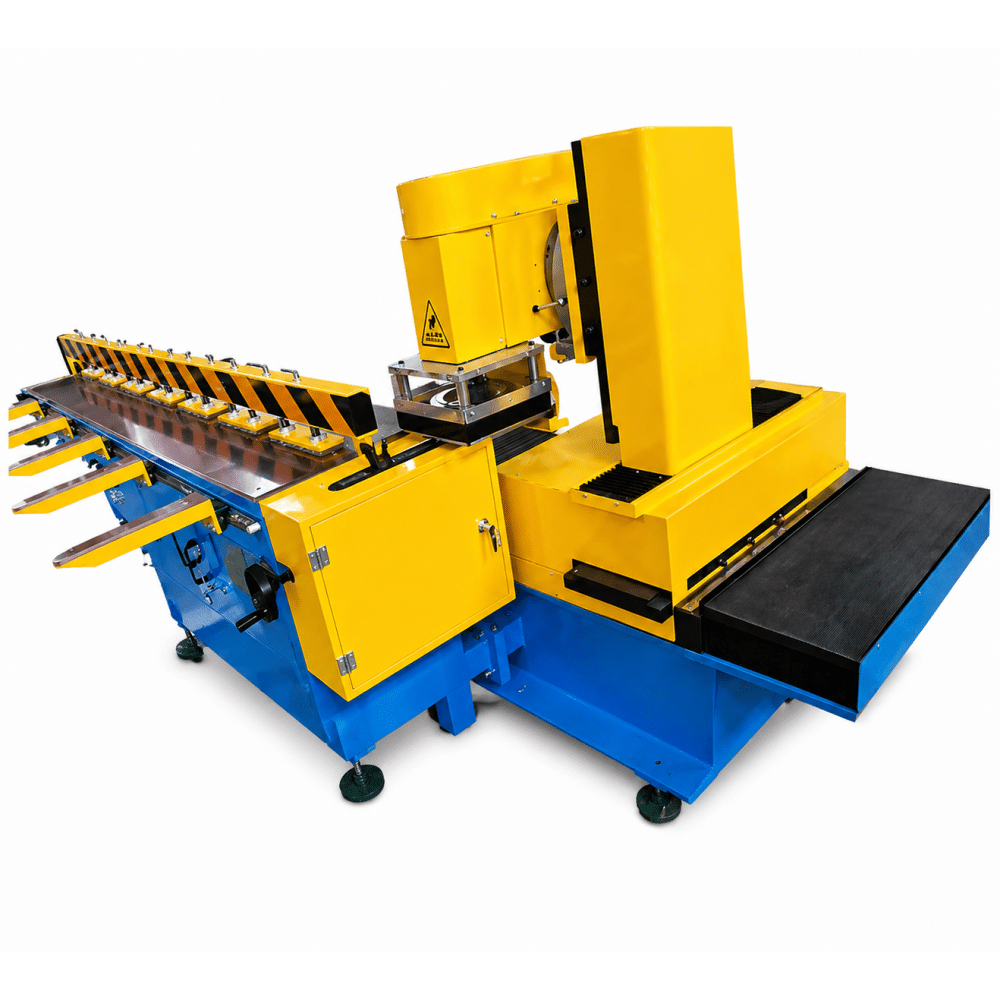

The Pressboard Beveling Machine is specifically designed for transformer insulation manufacturing, widely used to process insulation pressboard into precise bevel edges. This insulation board beveling machine ensures a slope length of 15–20 times the board thickness, guaranteeing uniform bonding thickness and improved insulation reliability in transformer applications.
As a critical piece of transformer insulation processing equipment, this machine delivers high precision, stable performance, and consistent bevel quality, making it an ideal solution for power transformer manufacturers.
The pressboard beveling machine for transformer manufacturing is mainly used to mill insulation pressboard into uniform bevel edges, ensuring precise oblique connections and consistent insulation thickness. It is widely applied in oil-immersed transformer and high-voltage insulation systems.
The milling cutter angle and height can be freely adjusted, allowing the machine to handle different beveling requirements for various insulation board bevel cutting applications.
The workpiece is securely fixed through pneumatic pressing. An elastic pad under the pressure beam protects the pressboard surface, preventing deformation or damage during processing.
Equipped with high-precision linear rails, the machine ensures excellent straightness of the bevel edge, making it suitable for high precision pressboard milling machine applications.
Driven by an imported motor, the feed system supports stepless speed adjustment from 1.5–6 m/min, ensuring smooth operation and improved efficiency in industrial pressboard beveling processes.
Suitable for processing insulation pressboard with a thickness range of 2–8 mm, covering most transformer insulation production needs.
Integrated CNC system with Siemens human-machine interface ensures easy operation, high automation, and reliable performance, making it a modern CNC pressboard beveling machine for smart factories.
1.What is the Pressboard Beveling Machine used for?
The Pressboard Beveling Machine is specifically designed for transformer insulation manufacturing, particularly for processing insulation pressboard into precise bevel edges. It ensures uniform bonding thickness and improved insulation reliability in transformer applications.
2.What is the thickness range of pressboard that can be processed?
The machine is capable of processing insulation pressboard with a thickness range of 2–8 mm, which covers most transformer insulation production needs.
3.How does the Pressboard Beveling Machine ensure precision?
The machine features flexible angle and height adjustments, ensuring precise beveling for various insulation board applications. It also uses a high-precision linear guide system for excellent straightness of the bevel edge, ensuring consistent and high-quality results.
4.What are the key features of the Pressboard Beveling Machine?
Key features include flexible angle adjustments for precision beveling, pneumatic clamping with surface protection to prevent damage, high-precision linear guides, a stable feeding system with variable speed control, and an integrated CNC control system with Siemens HMI for easy operation.
