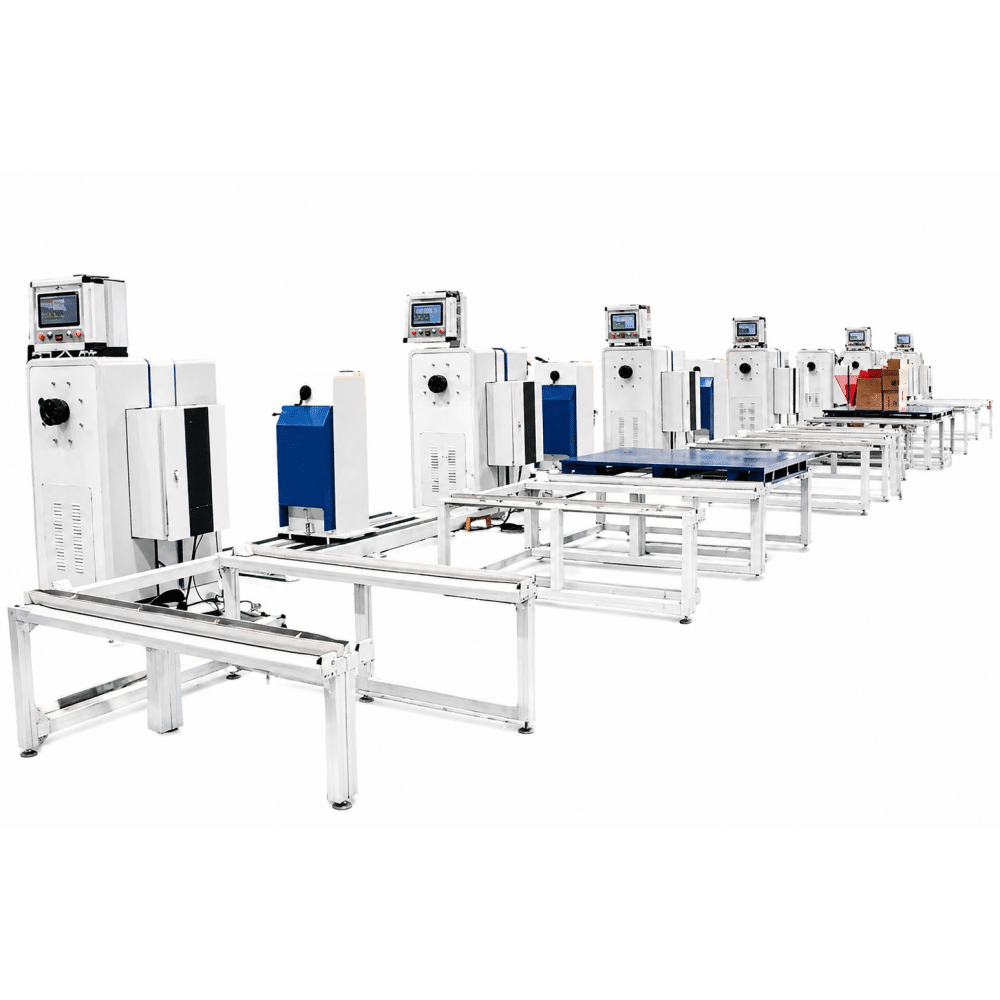

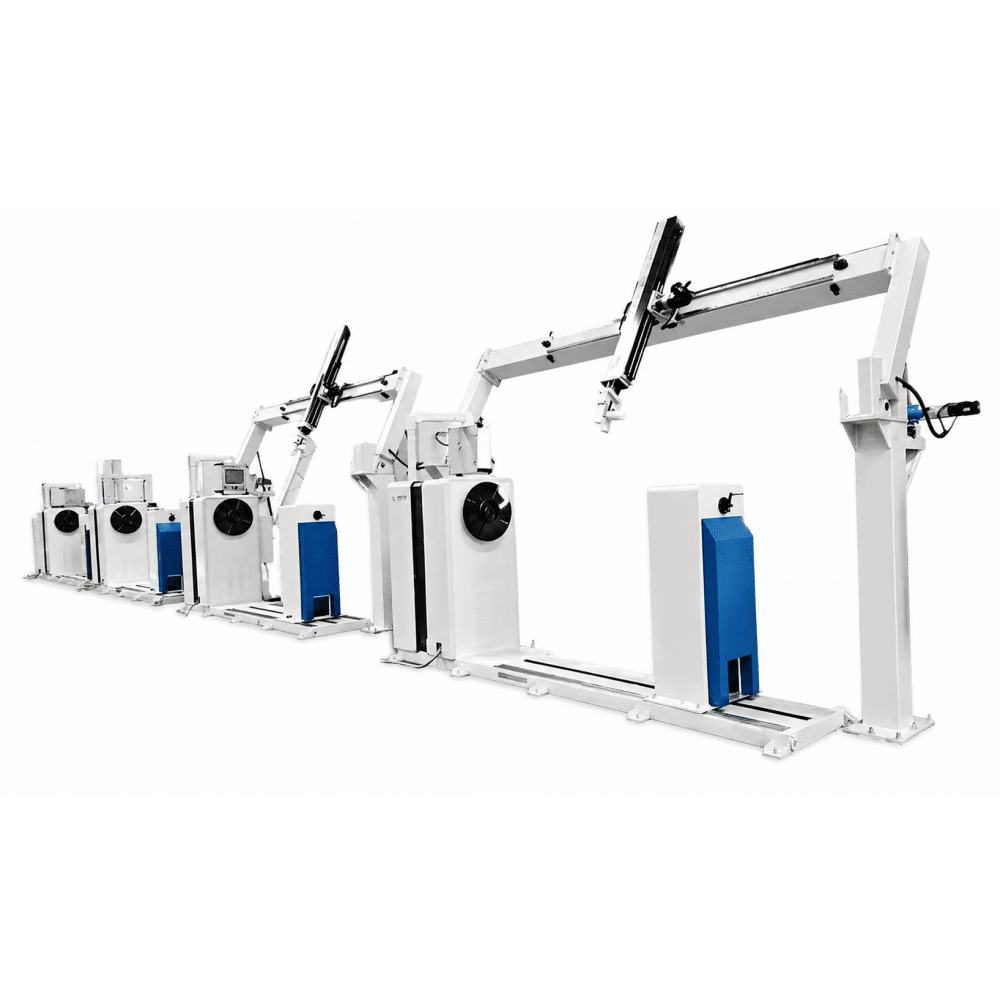

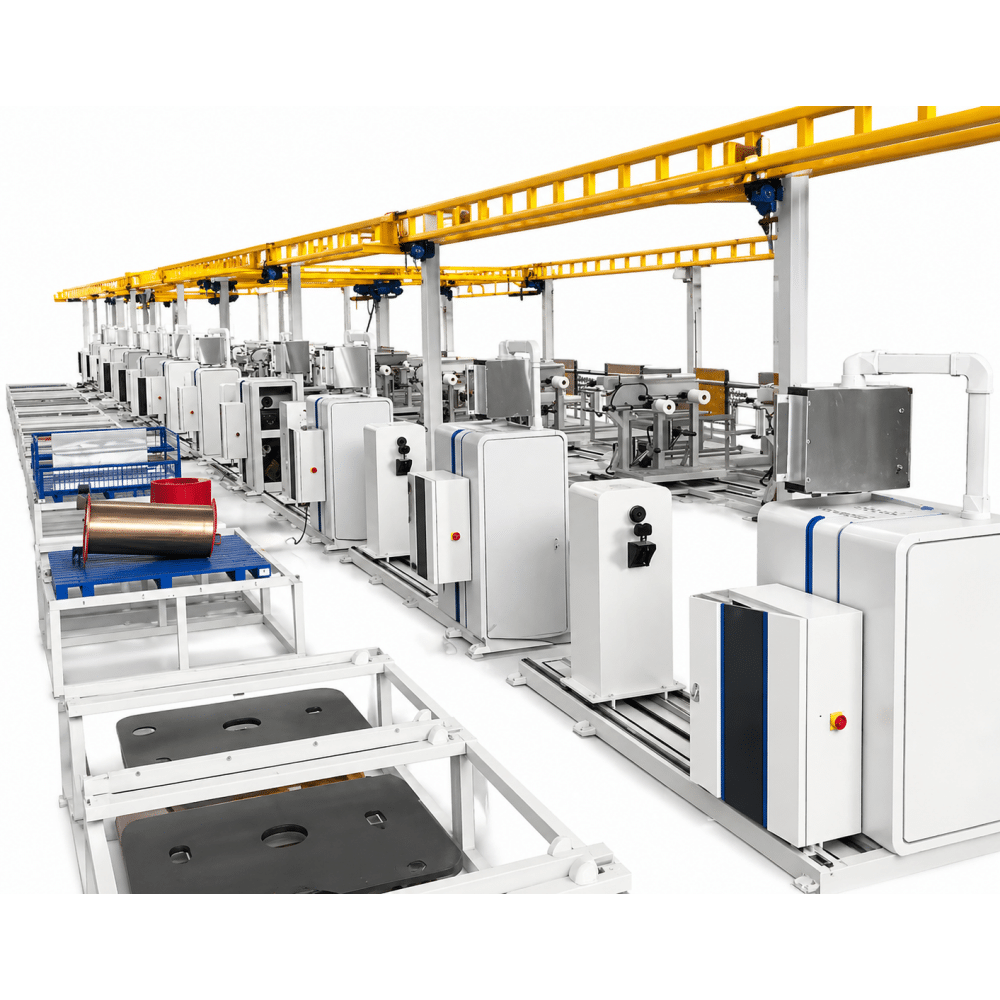

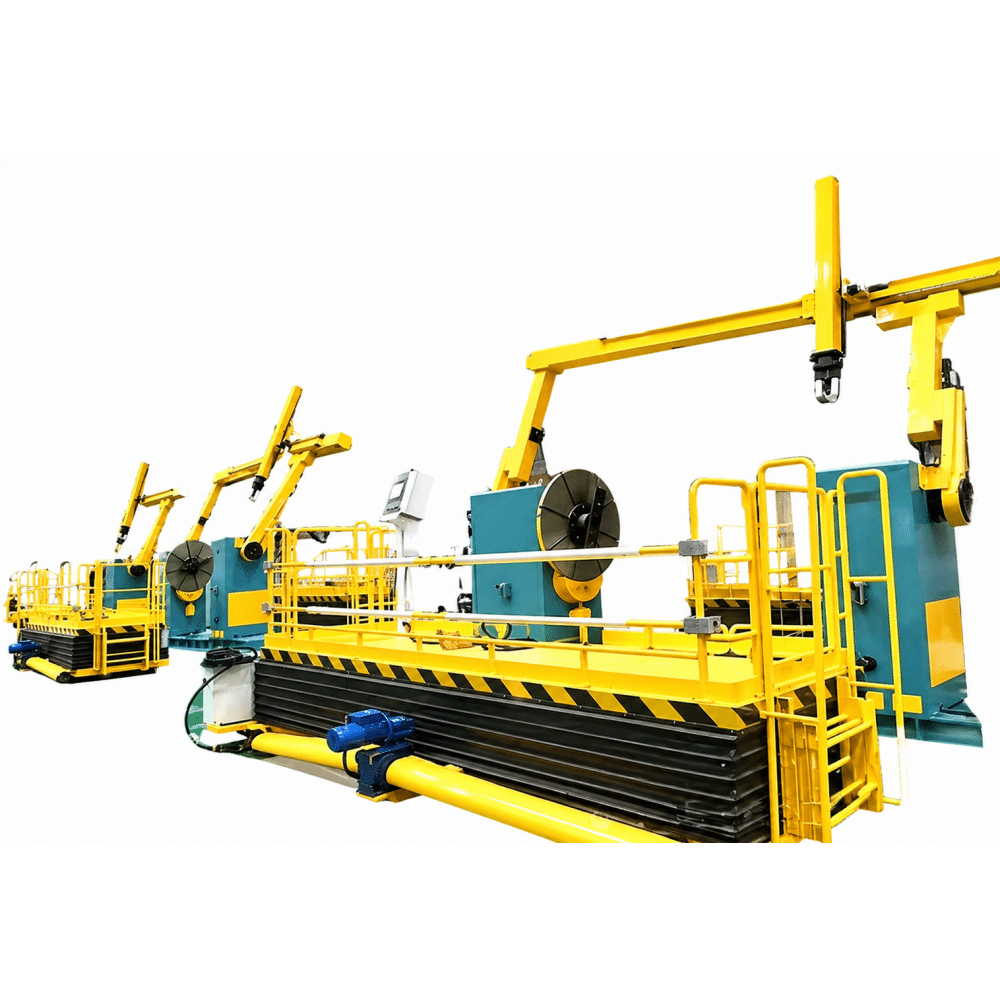

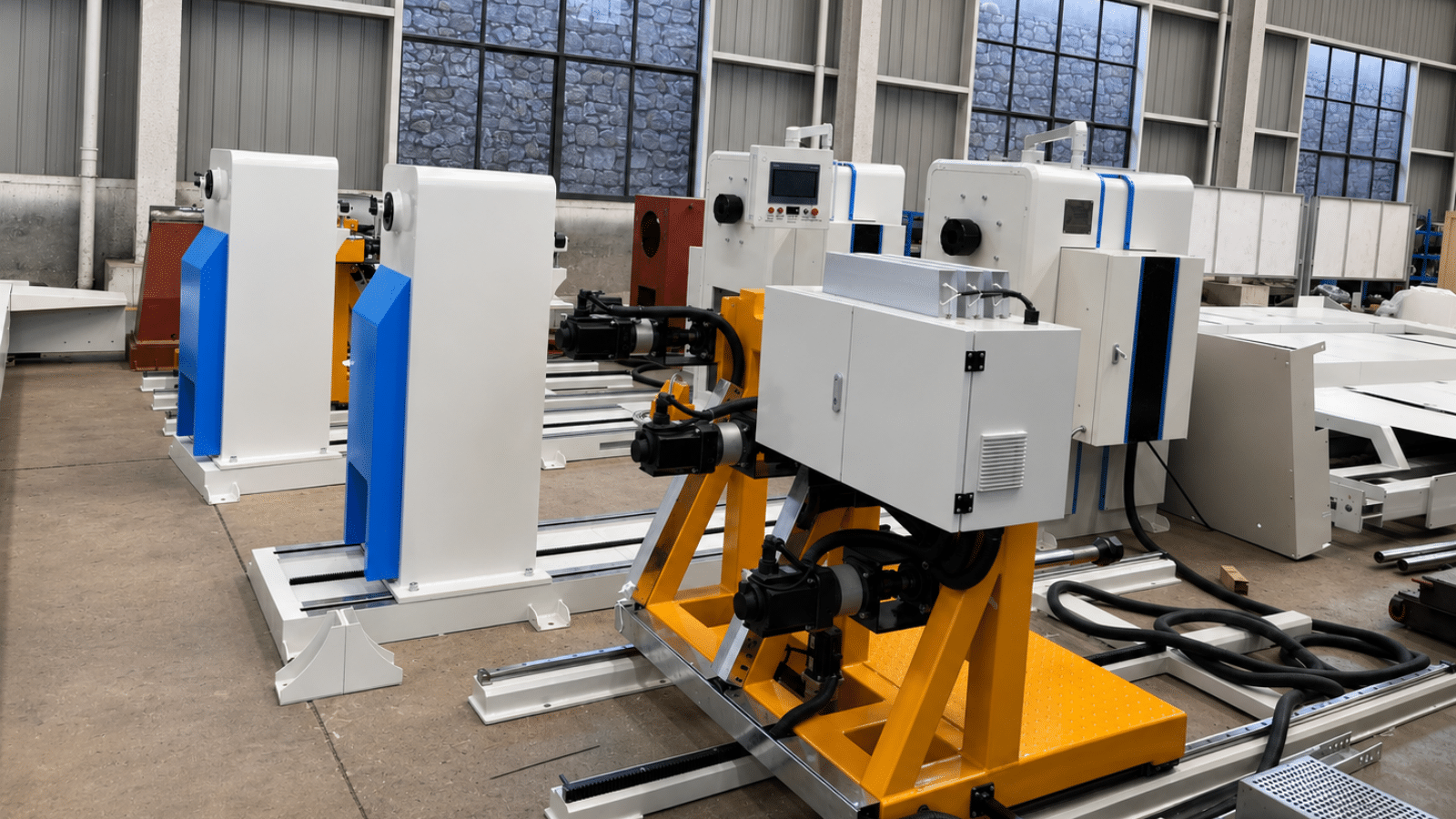

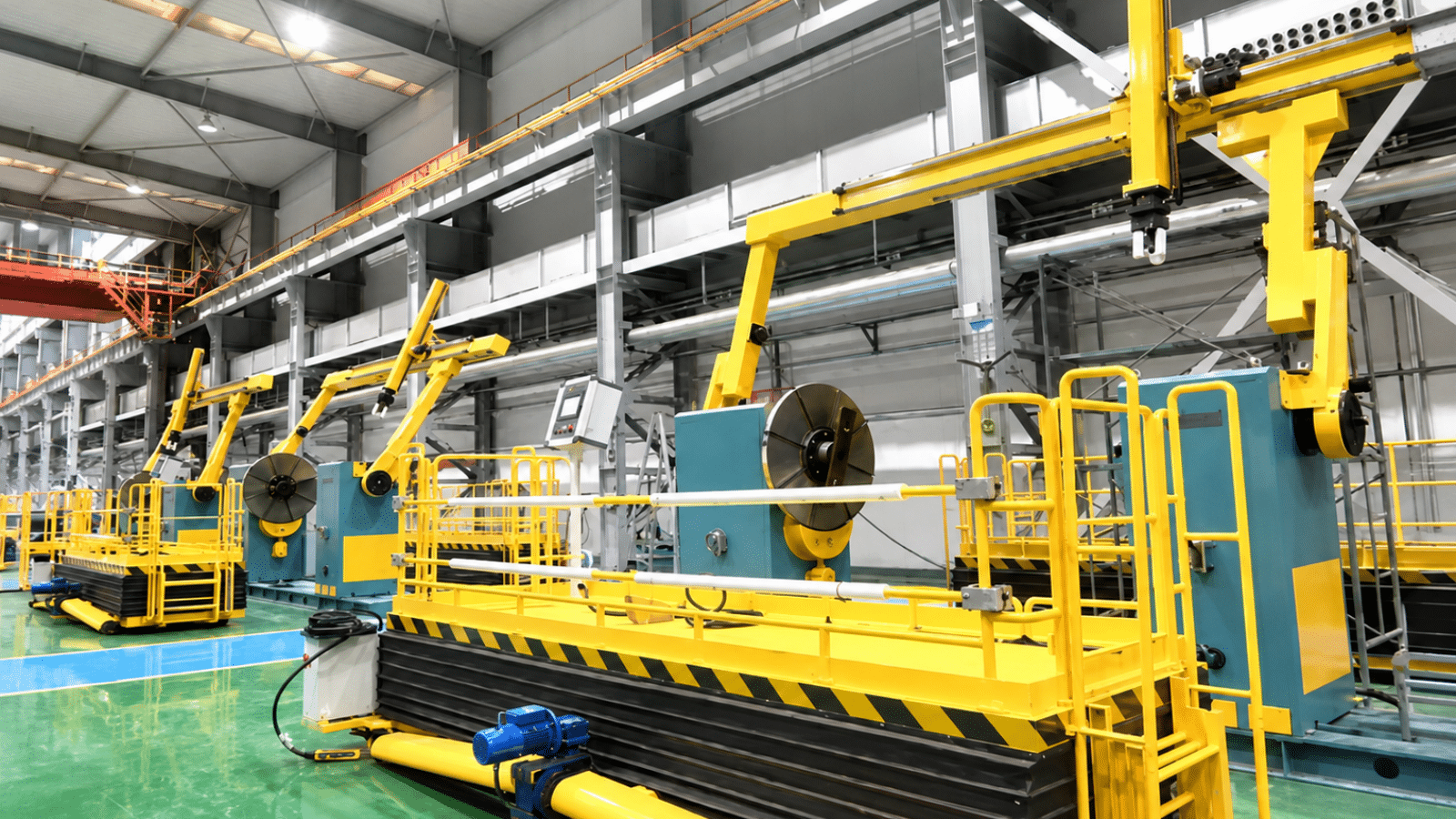

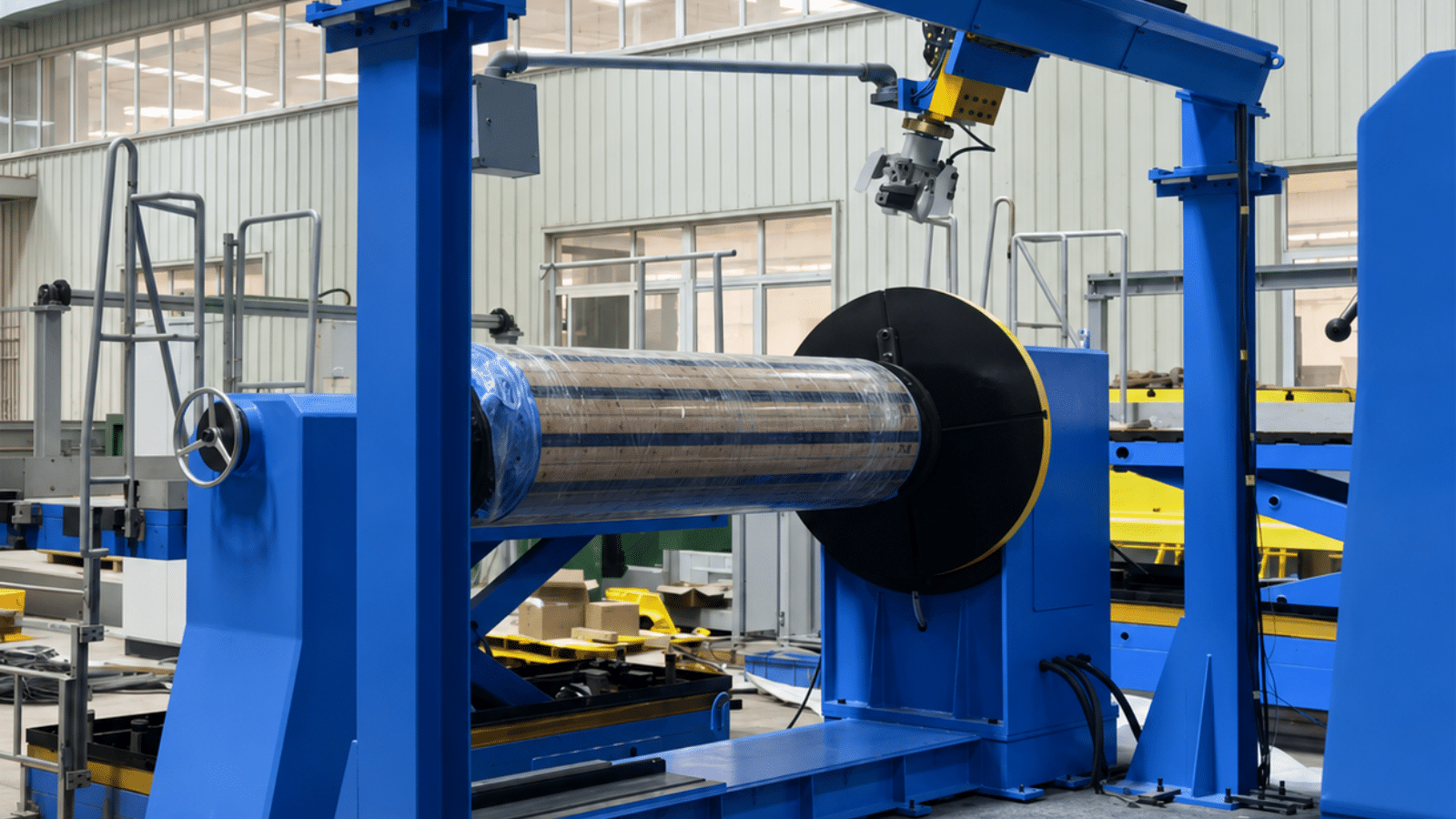

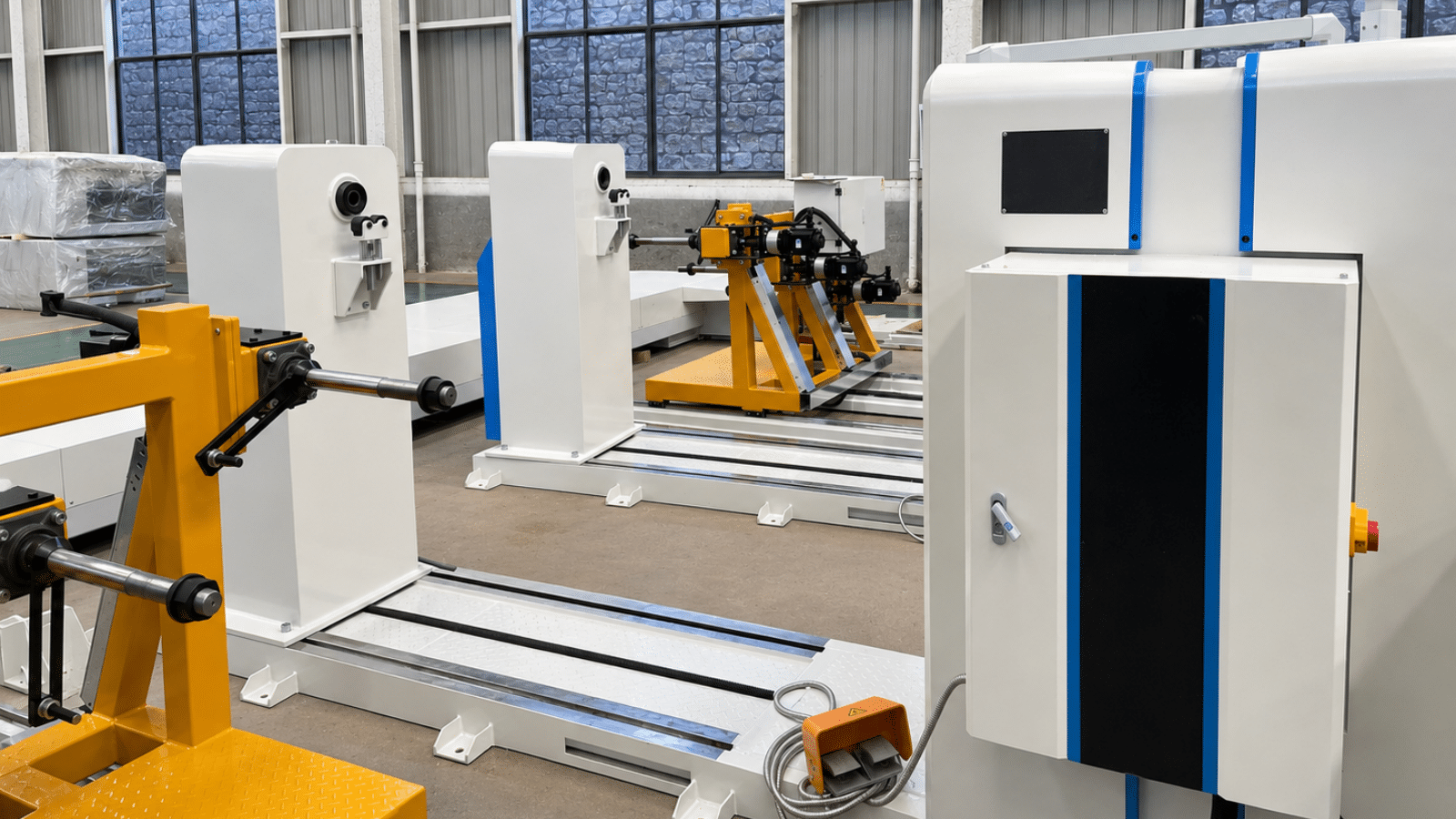

The Horizontal Winding Machine is built for handling heavy-duty coil production in high-voltage and large-capacity transformer applications. It delivers strong torque output, accurate control, and reliable operation, making it suitable for demanding transformer and reactor manufacturing processes.
Application Field
The horizontal winding machine for transformer coils is widely used in the production of high-voltage transformers, large-capacity transformers, and electrical reactors. It is suitable for heavy-duty coil winding processes requiring high precision and reliability.
✔ High Torque and Load Capacity
Designed for large transformer coils, ensuring stable winding performance under heavy loads.
✔ Smooth Soft Start System
Provides impact-free startup, protecting both the machine and coil structure.
✔ Variable Speed with Constant Torque
Stepless speed regulation ensures consistent performance across different winding conditions.
✔ High-Precision Counting System
Equipped with forward/reverse counting and power-off memory to ensure accurate coil turns.

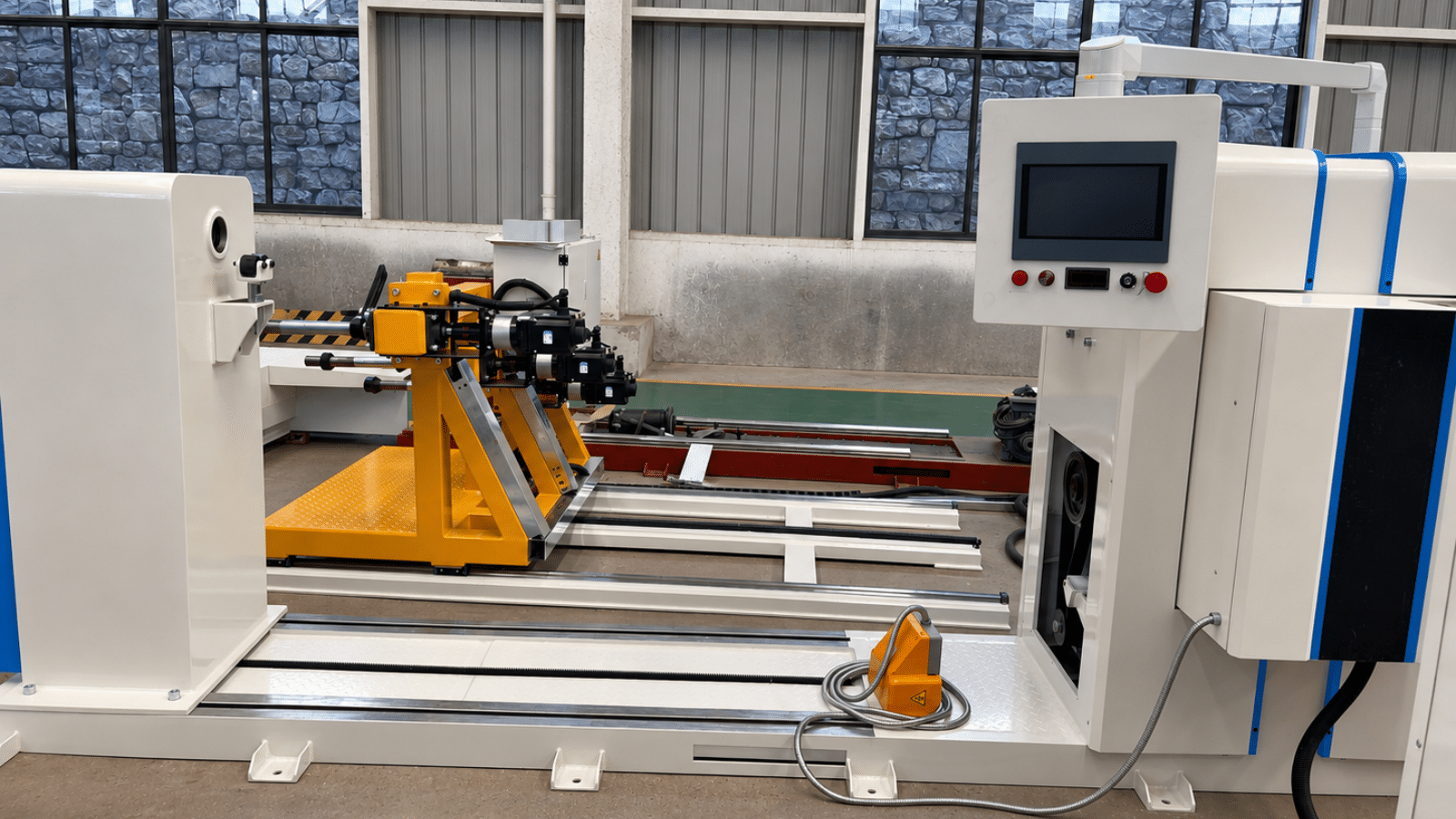

✔ User-Friendly Operation
Includes both button control and pedal operation for safe and efficient use.
(1) Pedestal part
(2) Headstock
(3) Chuck
(4) Tailstock
(5) Electrical control system
(6) Counter
(7) Button station
| Model
Parameter |
WR-25 |
WR-15 |
WR-10 |
WR-5 |
WR-3 |
WR-1 |
| Max.load（T） | 25 | 15 | 10 | 5 | 3 | 1 |
| Chuck center height | 1800 | 1600 | 1400 | 1400 | 1200 | 900 |
| Chuck diameter(mm) | 1600 | 1600 | 1000 | 400 | ||
| Center distance（mm） | 2000-4500 | 2200-4000 | 1500-4000 | 1600-2500 | 1200-2100 | 800-2000 |
| Max.winding diameter
(mm) |
3400 | 3400 | 2400 | 2200 | 2000 | 1500 |
| Max.main spindle torque N.m | 25000 | 18000 | 15000 | 4000 | 4000 | 1000 |
| Rated load（kg） | 25000 | 15000 | 10000 | 5000 | 3000 | 1000 |
| Motor power | 15 kW | 11 kW | 15kW | 7.5kW | 5.5kW | 5.5kW |
| Chuck rotation speed | 0-10 | 0-10 | 0-16 | 0-120 | 0-120 | 0-100 |
The machine features a high-precision counting system with forward/reverse counting capabilities and a power-off memory function. This ensures that coil turns are accurately counted even if power is lost during the process.
Yes, the Horizontal Winding Machine is designed with user-friendly controls, including button control and pedal operation. This makes the machine easy and safe to operate for various users.
3.What safety features are included with the Horizontal Winding Machine?
The machine includes a smooth soft start system to avoid sudden impacts during startup, as well as reliable safety controls integrated into the button and pedal operation for safer use.
