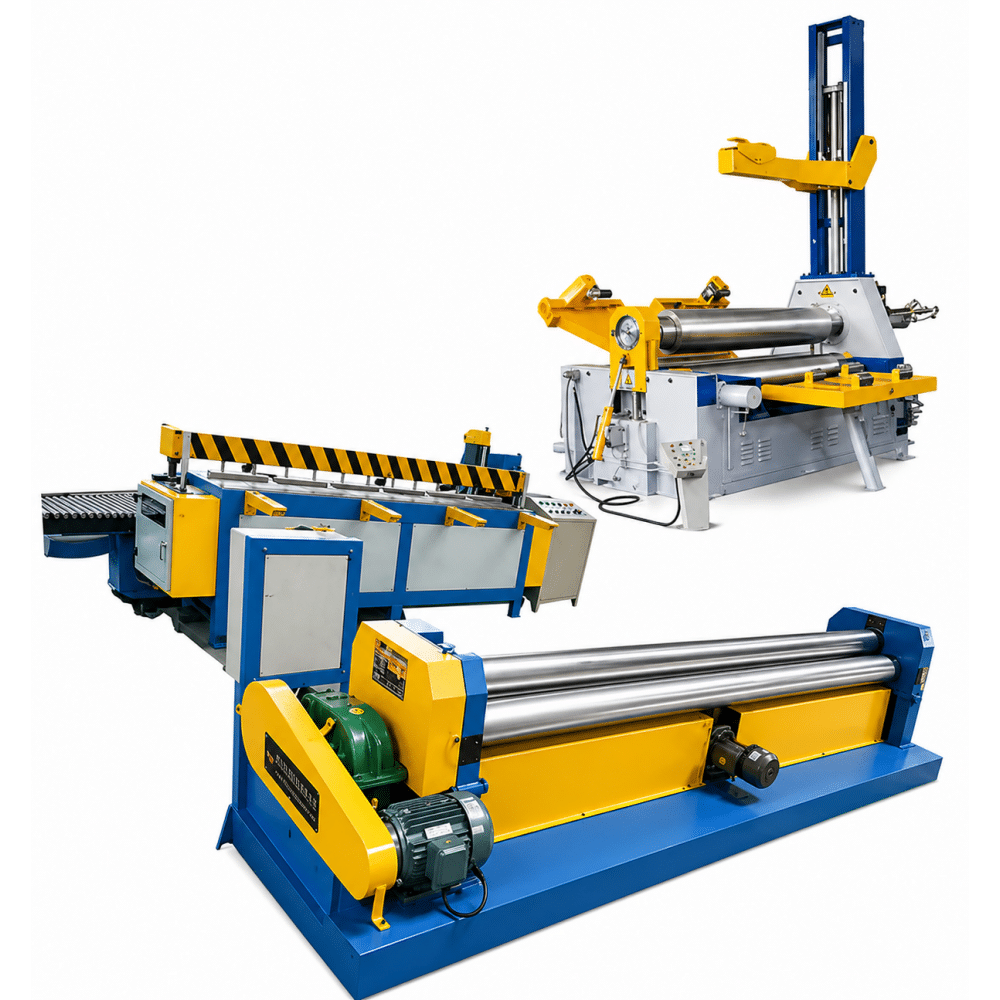

The Cylinder Rolling Machine is a key piece of equipment used in transformer insulation manufacturing, specifically designed to form insulation pressboard into cylindrical shapes. This pressboard cylinder rolling machine for transformer applications ensures smooth rolling, precise arc forming, and high structural consistency.
As an essential insulation cylinder forming machine, it is widely used in oil-immersed transformer production, where high-quality pressboard cylinders are required for insulation and mechanical support.
This cylinder rolling machine for insulation board is used to roll flat pressboard into arc shapes, enabling efficient forming of pressboard cylinders. It plays a critical role in transformer insulation cylinder production, especially for high-voltage and large-capacity transformers.
The pressboard cylinder rolling machine mainly consists of:
Upper and lower rollers
Machine pedestal
Drive transmission system
Electrical control system
This structure ensures stable operation and consistent performance in industrial cylinder rolling applications.
The Cylinder Rolling Machine is designed for transformer insulation manufacturing, specifically used to form insulation pressboard into cylindrical shapes. It ensures smooth rolling, precise arc forming, and high structural consistency, which is critical for transformer insulation production.
The machine is designed to process insulation pressboard, which is a key material used in transformer manufacturing. It is essential for creating cylindrical insulation components for oil-immersed transformers and other high-voltage applications.
The machine uses CNC control, ensuring high precision in the rolling process. It enables stable drive and accurate arc forming, resulting in consistent cylindrical shapes with high structural integrity.
The machine features CNC control for precise operation, stable rolling for large-diameter cylinder forming, and the ability to accommodate custom sizes to meet various transformer insulation needs.
The machine adopts a three-roller structure. The upper roller can move up and down with limit control, effectively preventing slipping and ensuring smooth rolling during pressboard cylinder forming.
The upper roller is driven by a reducer and coupling system, connected to the lower roller through a gearbox. The control panel supports forward, reverse, jog, continuous rotation, and drop functions, improving flexibility in cylinder rolling machine operation.
The rollers are plated or coated with polyurethane, enhancing durability and ensuring stable friction during insulation board rolling processes.
Equipped with a dedicated pressboard support system, this machine enables easy rolling of large-diameter cylinders. This innovation makes it highly suitable for transformer insulation cylinder manufacturing, especially for large power transformers.
Cylinder Diameter: Φ300–3500 mm
Length: 1500–4000 mm (customizable)
Thickness Range: 1–8 mm
Rolling Speed: 4 m/min
