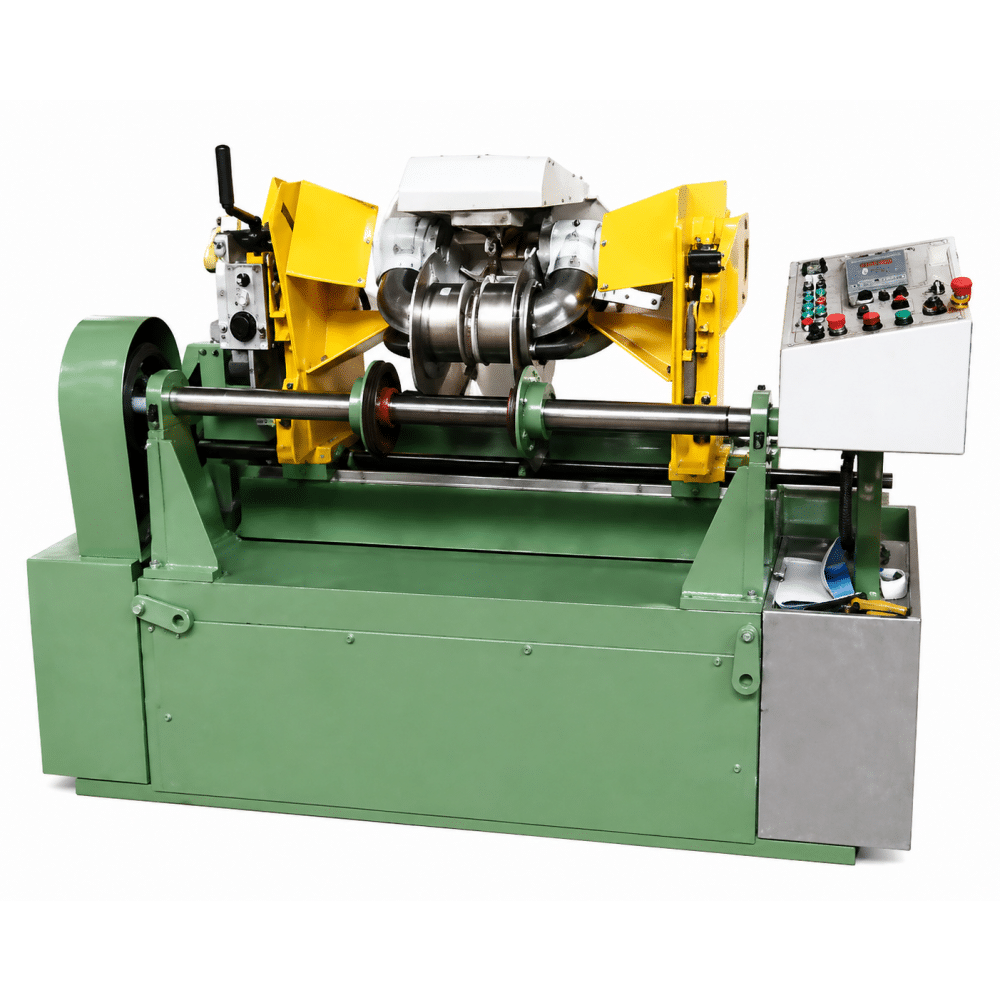

The Core Coil Winding Machine 3D is designed for efficient and precise winding of transformer coils, especially for oil-immersed transformers with a rated capacity of 50–630 KVA. It integrates advanced control and mechanical systems to ensure stable performance and high production efficiency.
Applicable Transformer Capacity: 50–630 KVA (oil-immersed transformers)
Maximum Spindle Speed: 320 r/min
Spindle Drive System:
Frequency conversion with stepless speed regulation
Drive Gear Module: m = 3
Drive Gear Center Height: 750 mm
Core Placement Method: Horizontal
Core Flipping Mode: Electric control
Core Turning Speed: Approx. 3 minutes per rotation
Core Translation Speed (Forward & Backward): 850 mm/min
Tension Pay-off Frame Size: 1300 × 650 mm
Maximum Tension: 100 N·m
Q: What is a core coil winding machine 3D used for?
A: It is used for winding transformer coils, especially in oil-immersed transformer production with high precision and efficiency.
Q: What transformer capacity is supported?
A: This machine is suitable for oil-immersed transformers with a capacity range of 50–630 KVA.
Q: Does the machine include a tension control system?
A: Yes, it is equipped with a tension pay-off system to ensure stable wire feeding and accurate winding.
