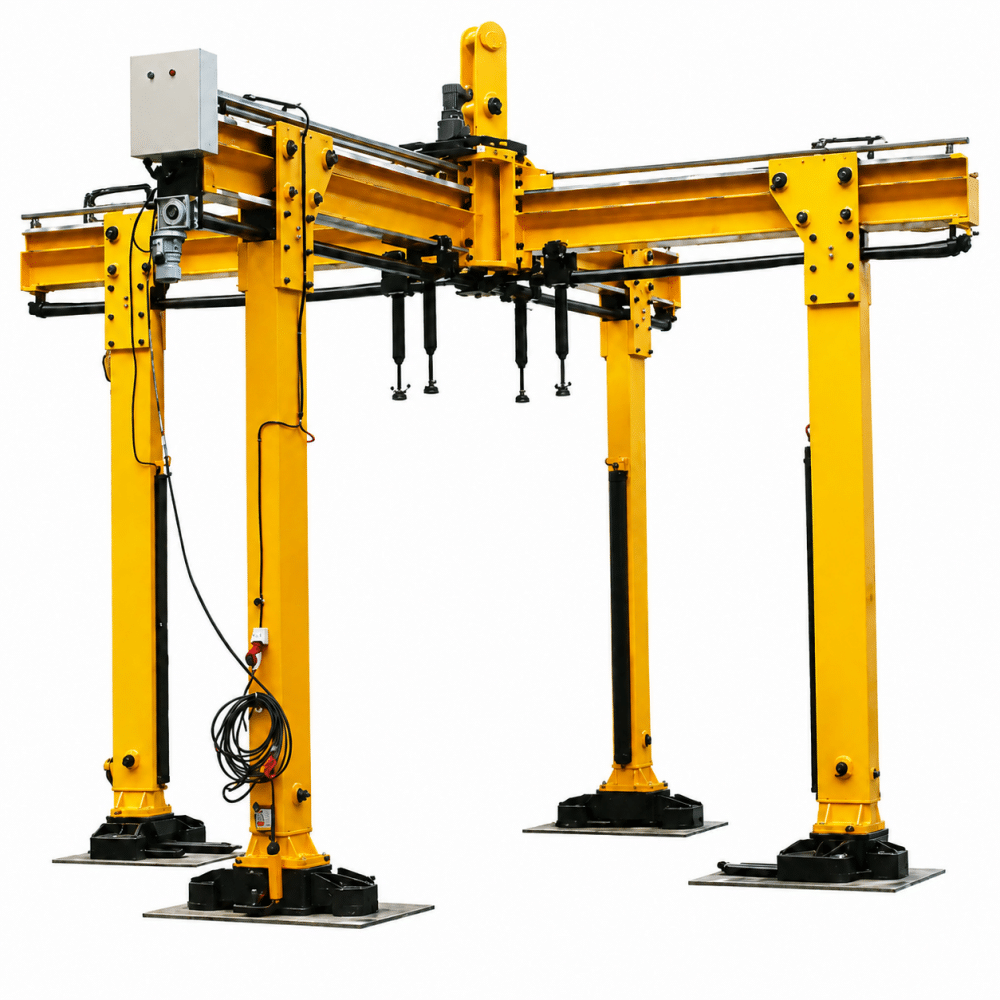

Coil Cross Lifting Beam

Introduction of Coil Cross Lifting Beam

The Coil Cross Lifting Beam is developed for controlled lifting and positioning of transformer coils during workshop handling and assembly stages. It ensures balanced load distribution and secure support when moving heavy coil structures.

Designed with a multi-point adjustment system, this transformer coil lifting beam adapts to varying coil dimensions, helping operators maintain stability and reduce handling risks in industrial environments.

Key Advantages

✔ Variable Geometry Design
The beam configuration can be adjusted to match different coil sizes, allowing better load distribution during lifting.

✔ Adjustable Hanging Leg
The support arms can slide horizontally to align with coil diameter, providing flexibility for different specifications.

✔ Adaptive Hanging Feet
The lower contact components are adjustable along guide tracks to fit coil thickness and improve gripping stability.

✔ Controlled Lifting Angle
The beam angle can be set within 90° to 60° to ensure safe lifting positions and optimal balance.

✔ Integrated Stabilization Mechanism
Pressing elements help secure the coil axially, preventing displacement during lifting operations.

Structural Composition

The system consists of:

• Hanging beam:The angle can be adjusted within the range of 90° to 60° as per the requirements.
• Hanging leg:According to the coil diameter, it can be adjusted in the horizontal direction in    the cross-hanging beam.The adjustment can be done in two forms: manual adjustment and electric adjustment.
• Hanging feet: The hanging feet can be adjusted in the horizontal direction according to the thickness of the coil in the guide groove in the lower end of the lifting legs.
• Pressing rod:The hanging beam has four downward pressing rods, which are used for axial.The pressure rod is equipped with a quick adjustment and precise fine-tuning mechanism.

This modular setup allows flexible configuration for different transformer coil handling tasks.

Product Applications

• Handling of transformer coils during assembly
• Positioning of heavy coil components
• Workshop lifting operations for large electrical equipment
• Industrial coil transportation processes

FAQ

Q: Why is a cross lifting beam used instead of standard lifting tools?

A: A cross lifting beam distributes the load evenly across multiple points, reducing stress concentration and improving lifting stability for large coils.

Q: How does this lifting beam adapt to different coil sizes?

A: The adjustable arms and support points allow operators to match the beam configuration to the coil’s diameter and thickness.

Q: What ensures stability during lifting?

A: The combination of adjustable geometry and stabilizing rods helps maintain balance and prevents unwanted movement.
