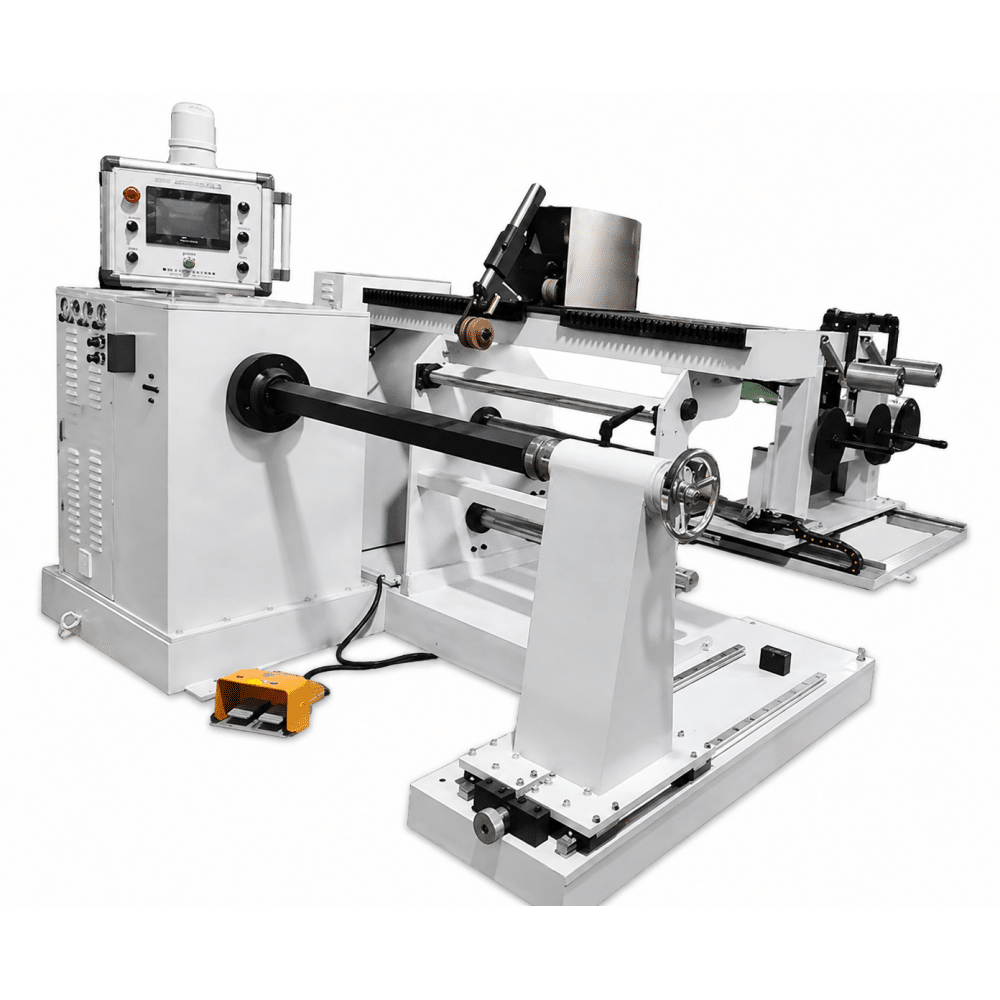

The Automatic High Voltage Winding Machine for Large Transformer Coils is engineered for high-capacity and precision winding in power transformer manufacturing. Designed to handle large coil dimensions, it provides stable torque output, accurate positioning, and consistent winding quality for demanding high-voltage applications.
| SN | Name | Unit | Quantity | Remarks |
| 1 | Main winding unit | Set | 1 | Core component |
| 2 | Auto spreading device | Set | 1 | For wire distribution |
| 3 | Layer insulation supply device | Set | 1 | For 2-end / 3-end insulation |
| 4 | PLC control system (HMI interface) | Set | 1 | Human-machine interface |
| 5 | Servo motor system | Set | 1 | High precision control |
| 6 | Tension-adjustable feeding reel (digital display) | Set | 1 | Double-end feeding |
| 7 | Electrical cabinet | Set | 1 | Integrated control system |
Q:What is an automatic high voltage winding machine used for?
A:It is used to produce high-voltage transformer coils with high precision and automation, suitable for industrial transformer manufacturing.
Q:What are the advantages of an HV winding machine?
A:It offers high automation, stable performance, and precise control, improving efficiency and reducing production errors.
Q:Can this machine handle different coil shapes?
A:Yes, it supports round, oval, rectangular, and other complex coil shapes for transformer production.
