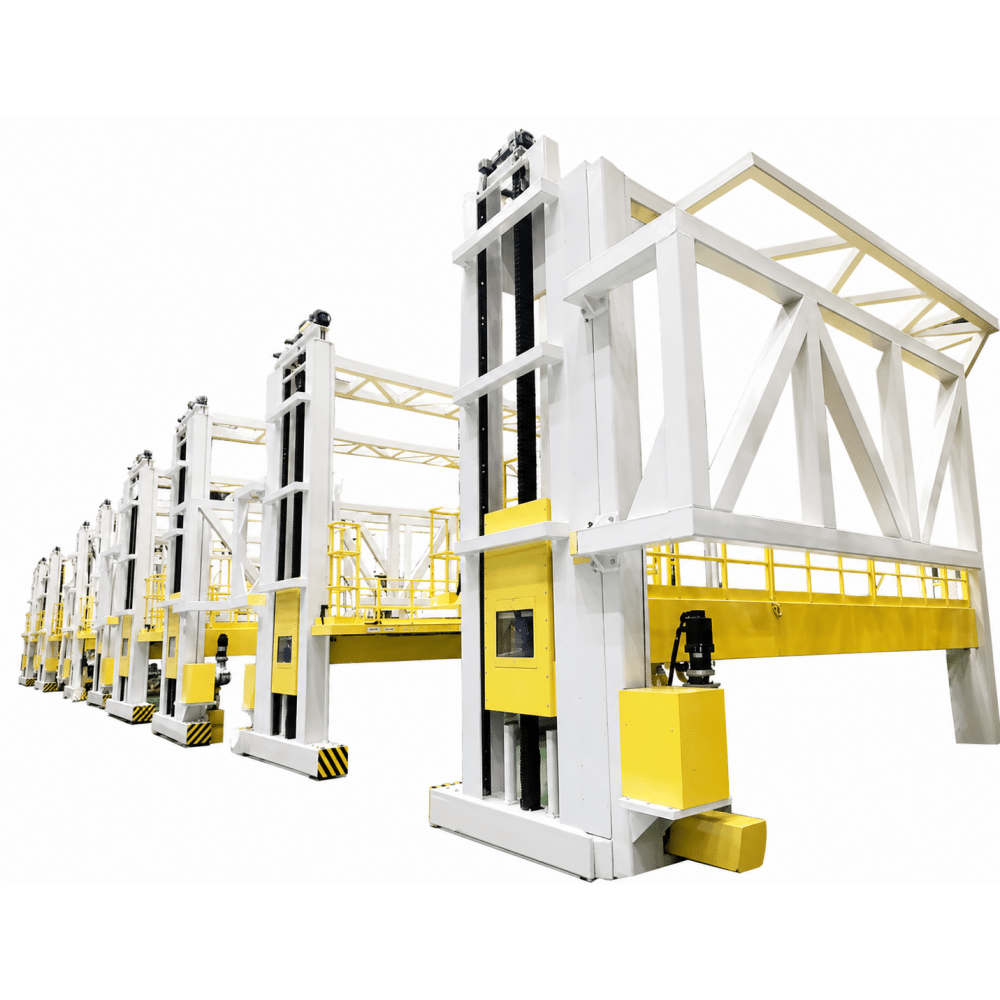

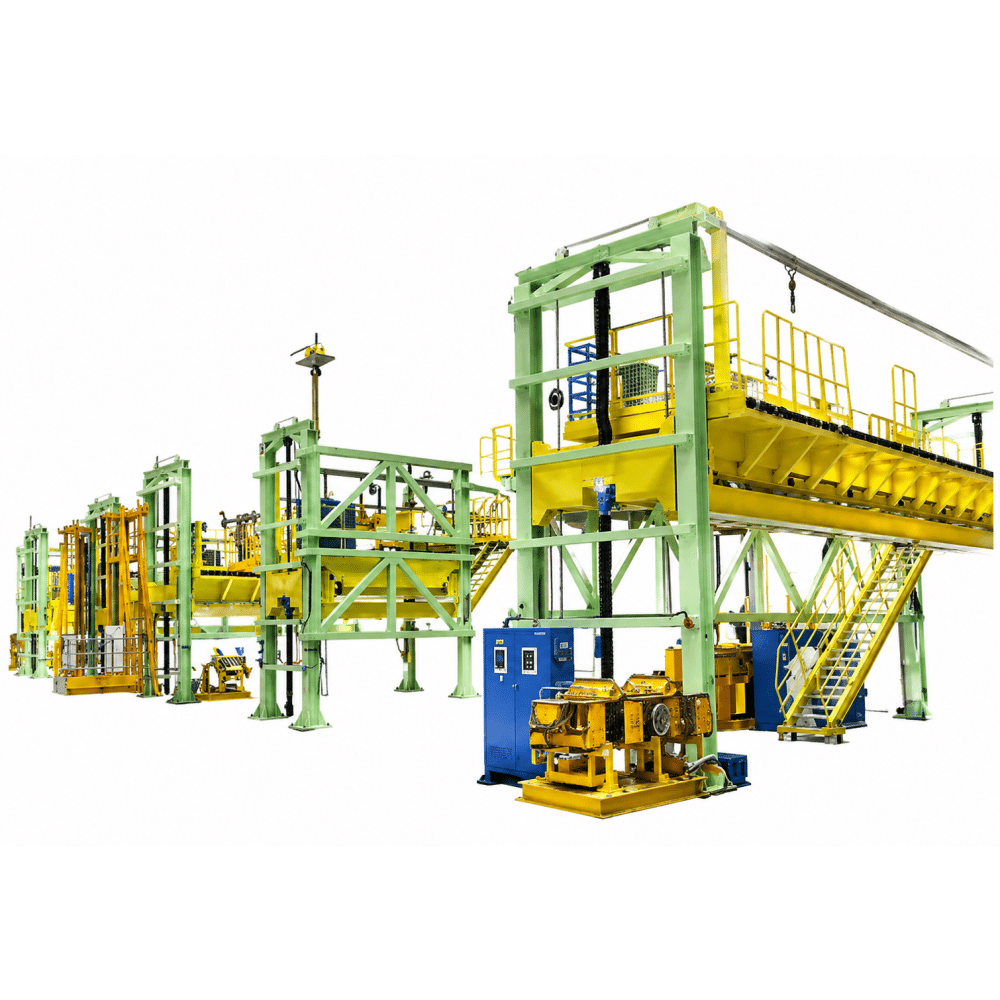

The Assembly Platform is a specialized workstation designed for the assembly of large and medium-sized transformers. Widely used in transformer manufacturing, it provides a stable and flexible working environment for efficient assembly operations.This transformer assembly platform consists of two independently movable frames, allowing precise adjustment of height and horizontal position. It enables operators to adapt the platform to different transformer sizes and assembly requirements, improving efficiency and safety during production.
✔ Adjustable Lifting System
The platform adopts a motor-driven lifting system combined with a worm gear reducer and lead screw mechanism, ensuring smooth and precise height adjustment. Hydraulic lifting options are also available.
✔ Dual Safety Protection Design
Equipped with both electrical and mechanical self-locking systems, the platform ensures safe and reliable positioning at any height.
✔ Flexible Working Area
The extendable plates with positioning pins provide additional workspace while ensuring operator safety during use.
✔ Integrated Power Supply
Built-in power sockets allow convenient use of tools directly on the working platform.
✔ Enhanced Lighting System
Equipped with crank arm lamps and high-power lighting to improve visibility and ensure safe operation.
✔ Durable Mobility Design
Polyurethane wheels provide strong load capacity, floor protection, and anti-static performance, making this industrial assembly platform for transformer suitable for heavy-duty environments.
✔ Intelligent Control System
Dual control stations (ground and platform) with interlock protection prevent misoperation and ensure safe control during movement and lifting.
1.What is the Assembly Platform used for?
The Assembly Platform is designed for the assembly of large and medium-sized transformers. It provides a stable and adjustable workspace for transformer manufacturing, making assembly operations more efficient and safe.
2.What is the weight capacity of the Assembly Platform?
The Assembly Platform offers multiple load capacity options, including 2T, 3T, 5T, 10T, 15T, and 20T, to accommodate different transformer sizes and assembly needs.
3.How does the lifting system on the Assembly Platform work?
The platform uses a motor-driven lifting system, combined with a worm gear reducer and lead screw mechanism. For additional flexibility, a hydraulic lifting system option is also available.
4.Is the Assembly Platform safe to use?
Yes, the platform is equipped with a dual safety protection design, incorporating both electrical and mechanical self-locking systems to ensure safe and reliable positioning at any height.
